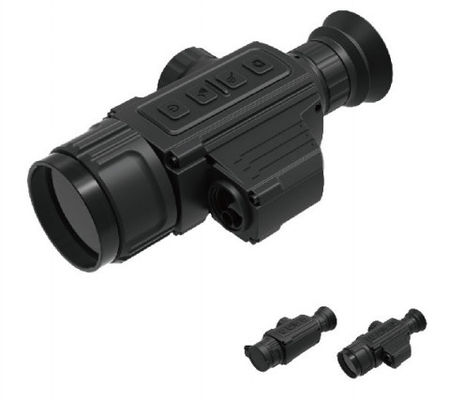

FW-RS519-640L Thermal Imaging Night Vision Device with 1000m Laser Distance Measurement IP66 Waterproof and 5h Lithium Battery
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-RS519-640L |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Detection Type | Vanadium Oxide Uncooled Focal Plane | NETD | ≤35mk@F1.0 |
|---|---|---|---|
| Focal Distance | 50mm | Display | 1440*1080 OLED |
| Highlight | Thermal imaging night vision device,640L Thermal imaging night vision device |
||
Product Description
FW-RS519-640L Thermal Imaging Night Vision Device
Key Features
- 384*288 Vanadium Oxide Uncooled Focal Plane
- High resolution 1440*1080 display with superior performance
- WiFi image transmission with built-in video recording and photo capture
- 1000m precision laser distance measurement
- IP66 waterproof and dustproof rating
Technical Specifications
| Detector Type | Vanadium Oxide Uncooled Focal Plane |
| Resolution | 640*512 |
| Pixel spacing | 12μm |
| NETD | ≤35mk@25℃ |
| Frame rate | 50Hz |
| Focal distance | 50mm/F1.0 |
| FOV | 8.8°*7.0° |
| Image mode | White hot, black hot, red hot, iron red |
| Basic magnification | 2.3x |
| Image transmission | WiFi real-time transmission with mobile app support |
| Focus | Manual focus |
| Display | 0.39" color OLED, 1440*1080 resolution |
| Humidity | 0-95% |
| Electronic zoom | 2x, 4x |
| Battery | Lithium battery (>5h operation) |
| Eyepiece magnification | 15x |
| Laser Distance Measurement | 905nm wavelength, 10-1000m range |
| Protection level | IP66 |
| Drop resistance | 1m |
| Operating temperature | -30℃ to +55℃ |
| Storage temperature | -40℃ to +70℃ |
| Weight | 570g (632g with laser ranging) |
| Dimensions | 200*80*65mm (200*110*65mm with laser ranging) |
Performance Metrics
| Target | Size | Detection Distance | Identification Distance |
|---|---|---|---|
| Person | 1.8m*0.5m | 1900m | 1000m |
| Vehicle | 2.3m*2.3m | 3200m | 1600m |
