Top- FW-RS519L Thermal Imaging Night Vision Device with 1000m Laser Distance Measurement IP66 Waterproof and Dustproof ≤35mk NETD
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-RS519L |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Detection Type | Vanadium Oxide Uncooled Focal Plane | NETD | ≤35mk@F1.0 |
|---|---|---|---|
| Focal Distance | 35mm | Display | 1440*1080 OLED |
| Highlight | Thermal Imaging Night Vision Device,Top- FW-RS519L Night Vision Device |
||
Product Description

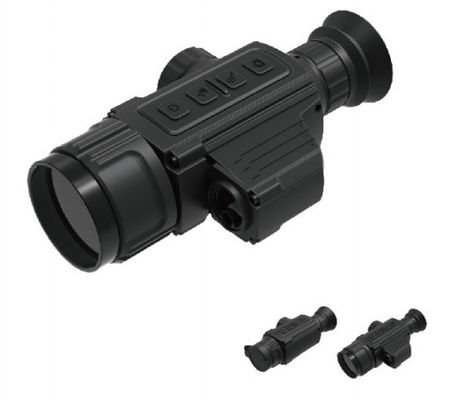

FW-RS519L Thermal Imaging Night Vision Device
Advanced Vanadium Oxide Uncooled Focal Plane Detection
Key Features
- 384×288 Vanadium Oxide Uncooled Focal Plane detector
- High resolution 1440×1080 display for superior image clarity
- Built-in WiFi transmission for real-time image sharing
- Integrated video recording and photo capture capabilities
- Precision 1000m laser distance measurement
- IP66 rated waterproof and dustproof construction
Technical Specifications
| Detector Type | Vanadium Oxide Uncooled Focal Plane |
|---|---|
| Resolution | 640×512 |
| Pixel Spacing | 12μm |
| NETD | ≤35mk@25℃ |
| Frame Rate | 50Hz |
| Focal Distance | 35mm/F1.0 |
| Field of View | 7.5°×5.7° |
| Image Modes | White hot, black hot, red hot, iron red |
| Display | 0.39inch color OLED, 1440×1080 resolution |
|---|---|
| Image Transmission | WiFi real-time transmission with mobile app support |
| Battery Life | >5 hours (Lithium battery) |
| Laser Distance Measurement | 905nm wavelength, 10m-1000m range |
| Protection Level | IP66 |
| Operating Temperature | -30℃ to +55℃ |
| Detection Distance | Person (1.8m×0.5m): 1400m Vehicle (2.3m×2.3m): 2200m |
|---|---|
| Identification Distance | Person (1.8m×0.5m): 700m Vehicle (2.3m×2.3m): 1100m |
| Weight | 520g (582g with laser ranging) |
| Dimensions | 190mm×80mm×65mm (190mm×110mm×65mm with laser ranging) |
