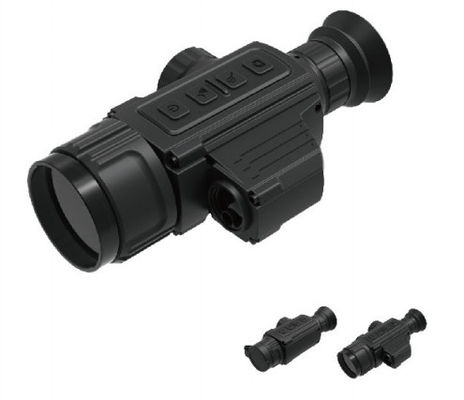

FW-RS519-640 Thermal Imaging Night Vision Device with 640*512 Vanadium Oxide Uncooled Focal Plane NETD ≤35mk@F1.0 and 1000m Laser Distance Measurement
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-RS519-640 |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Detection Type | Vanadium Oxide Uncooled Focal Plane | NETD | ≤35mk@F1.0 |
|---|---|---|---|
| Focal Distance | 35mm | Display | 1440*1080 OLED |
| Highlight | F1.0 Thermal Imaging Night Vision Device,Top- FW-RS519-640 Night Vision Device |
||
Product Description
Top- FW-RS519-640 Thermal Imaging Night Vision Device
High-performance thermal imaging with 1440*1080 OLED display and NETD ≤35mk F1.0
Key Features
- 640*512 Vanadium Oxide Uncooled Focal Plane
- High resolution 1440*1080 OLED display
- WiFi image transmission with built-in video recording and photo capture
- 1000m precision laser distance measurement
- IP66 waterproof and dustproof rating
Technical Specifications
| Detector Type | Vanadium Oxide Uncooled Focal Plane |
|---|---|
| Resolution | 640*512 |
| Pixel spacing | 12μm |
| NETD | ≤35mk@25℃ |
| Frame rate | 50Hz |
| Focal distance | 35mm/F1.0 |
| FOV | 12.5°*10.0° |
| Image mode | White hot, black hot, red hot, iron red |
| Basic magnification | 2.3x |
| Image transmission | WiFi real-time transmission with mobile app support for viewing, photo capture and video recording |
| Focus | Manual focus |
| Display | 0.39inch color OLED, 1440*1080 resolution |
| Humidity | 0-95% |
| Electronic zoom | 2x, 4x |
| Battery | Lithium battery (>5h operation) |
| Laser Distance Measurement | Wavelength: 905nm, Range: 10m-1000m |
| Protection level | IP66 |
| Working Temperature | -30℃ to +55℃ |
| Storage temperature | -40℃ to +70℃ |
| Weight | 525g (587g with laser ranging) |
| Size | 190*80*65mm (190*110*65mm with laser ranging) |
Performance Metrics
| Detection Distance |
Person (1.8*0.5m): 1400m Vehicle (2.3*2.3m): 2200m |
|---|---|
| Identification Distance |
Person (1.8*0.5m): 700m Vehicle (2.3*2.3m): 1100m |
