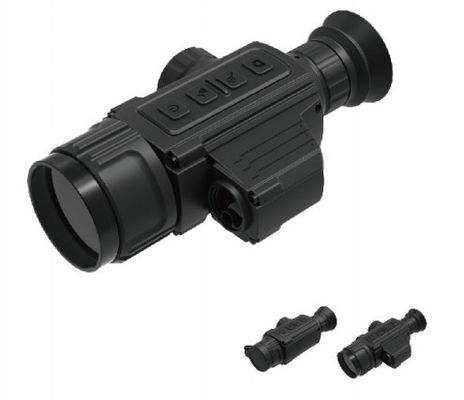

FW-RS519 Thermal Imaging Night Vision Device with 1000m Laser Distance Measurement IP66 Waterproof and 384*288 Resolution
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-RS519 |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Detection Type | Vanadium Oxide Uncooled Focal Plane | NETD | ≤35mk@F1.0 |
|---|---|---|---|
| Focal Distance | 19mm | Display | 1440*1080 OLED |
| Highlight | Uncooled Thermal Imaging Night Vision Device,FW-RS519 Night Vision Device |
||
Product Description
Vanadium Oxide Uncooled Focal Plane Detection Type FW-RS519 Thermal Imaging Night Vision Device
Key Features
- 384*288 Vanadium Oxide Uncooled Focal Plane detector
- High resolution 1440*1080 display with superior performance
- Built-in WiFi for real-time image transmission
- Integrated video recording and photo capture capabilities
- Precision 1000m laser distance measurement
- IP66 waterproof and dustproof rating
Technical Specifications
| Detector Type | Vanadium Oxide Uncooled Focal Plane |
|---|---|
| Resolution | 384*288 |
| Pixel spacing | 12μm |
| NETD | ≤35mk@25℃ |
| Frame rate | 50Hz |
| Focal distance | 19mm/F1.0 |
| FOV | 13.8°*10.4° |
| Image modes | White hot, black hot, red hot, iron red |
| Basic magnification | 2.3x |
| Image transmission | WiFi real-time transmission with mobile app support for viewing, recording, and photography |
| Focus | Manual focus |
| Display | 0.39" color OLED, 1440*1080 resolution |
| Humidity range | 0-95% |
| Electronic zoom | 2x, 4x |
| Battery | Lithium battery (>5 hours operation) |
| Magnification range | 1.77x~7.08x |
| Eyepiece magnification | 15x |
| Laser Distance Measurement |
Wavelength: 905nm
Range: 10m to 1000m
|
| Protection level | IP66 |
| Drop resistance | 1m |
| Operating temperature | -30℃ to +55℃ |
| Storage temperature | -40℃ to +70℃ |
| Weight | 470g (532g with laser ranging) |
| Dimensions | 165mm*80mm*65mm |
Performance Metrics
Detection distance: Person (1.8m*0.5m) - 750m | Vehicle (2.3m*2.3m) - 1800m
Identification distance: Person (1.8m*0.5m) - 376m | Vehicle (2.3m*2.3m) - 910m
