FW-RS735D Thermal Imaging Night Vision Device with NETD ≤20mk IP66 Waterproof and 50mm Focal Distance
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-RS735D |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Detection Type | Vanadium Oxide Uncooled Focal Plane | NETD | ≤20mk |
|---|---|---|---|
| Focal Distance | 50mm | Display | 1440*1080 OLED |
| Highlight | FW-RS735D Night Vision Device |
||
Product Description

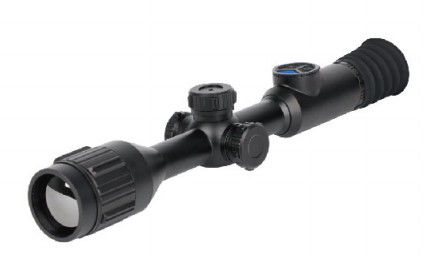

FW-RS735D Thermal Imaging Night Vision Device
Key Features
- 640*512 Vanadium Oxide Uncooled Focal Plane for high-resolution thermal imaging
- WiFi image transmission with built-in video recording and photo capture
- 0.49-inch color OLED display (1440*1080 resolution) for clear visualization
- IP66 rated for waterproof and dustproof operation in harsh environments
Technical Specifications
| Detector Type | Vanadium Oxide Uncooled Focal Plane |
|---|---|
| Resolution | 640*512 |
| Pixel Spacing | 12μm |
| NETD | ≤20mk@25℃ |
| Frame Rate | 50Hz |
| Focal Distance | 50mm |
| Minimum Focus Distance | 5m |
| FOV | 8.8°*7.0° |
| Image Modes | White hot, black hot, red hot, iron red |
| Basic Magnification | 2.72x |
| Lens Aperture | F1.0 |
| Focus | Manual focus |
| Display | 0.49-inch color OLED (1440*1080 resolution) |
| Eyepiece Magnification | 11.2X |
| Electronic Zoom | X1.0-8.0 |
| Battery Life | >15 hours |
| Vision Adjustment | -5D~+5D |
| Storage | Video and photo capture |
| Protection Level | IP67 |
| Operating Temperature | -20℃ to +50℃ |
| Storage Temperature | -40℃ to +60℃ |
| Weight | 1100g |
| Dimensions | 368.2mm * 84mm * 77.2mm |
| Detection Distance | Person (1.8m*0.5m): 2300m Vehicle (2.3m*2.3m): 3200m |
| Identification Distance | Person (1.8m*0.5m): 1150m Vehicle (2.3m*2.3m): 1600m |
