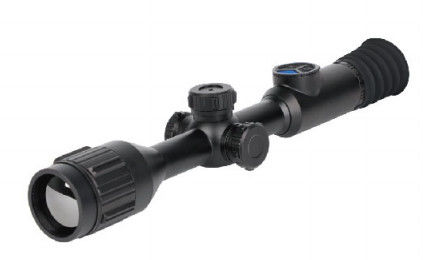

FW-RS735C Thermal Imaging Night Vision Device with 640*512 Resolution 35mm Focal Distance and ≤20mk NETD
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-RS735C |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Detection Type | Vanadium Oxide Uncooled Focal Plane | NETD | ≤20mk |
|---|---|---|---|
| Focal Distance | 35mm | Display | 1440*1080 OLED |
| Highlight | Uncooled Thermal Imaging Night Vision Device,FW-RS735C Night Vision Device |
||
Product Description
Vanadium Oxide Uncooled Focal Plane Detection Type FW-RS735C Thermal Imaging Night Vision Device
Key Features
- 640*512 Vanadium Oxide Uncooled Focal Plane detector for high-resolution thermal imaging
- Integrated WiFi transmission with built-in video recording and photo capture capabilities
- 0.49-inch color OLED display with 1440*1080 resolution for clear image viewing
- IP67-rated waterproof and dustproof construction for rugged environments
Technical Specifications
| Detector Type | Vanadium Oxide Uncooled Focal Plane |
|---|---|
| Resolution | 640*512 |
| Pixel Spacing | 12μm |
| NETD | ≤20mk@25℃ |
| Frame Rate | 50Hz |
| Focal Distance | 35mm |
| Minimum Focus Distance | 2m |
| FOV | 12.6°*10.1° |
| Image Modes | White hot, black hot, red hot, iron red |
| Basic Magnification | 1.91x |
| Lens Aperture | F1.0 |
| Focus | Manual focus |
| Display | 0.49-inch color OLED, 1440*1080 resolution |
| Eyepiece Magnification | 11.2X |
| Electronic Zoom | X1.0-8.0 |
| Battery Life | >15 hours |
| Vision Adjustment | -5D~+5D |
| Storage Capabilities | Video and photo capture |
| Protection Level | IP67 |
| Operating Temperature | -20℃~+50℃ |
| Storage Temperature | -40℃~+60℃ |
| Weight | 950g |
| Dimensions | 351mm*84mm*76.2mm |
| Detection Distance (Person) | 1600m (1.8m*0.5m target) |
| Detection Distance (Vehicle) | 2200m (2.3m*2.3m target) |
| Identification Distance (Person) | 800m (1.8m*0.5m target) |
| Identification Distance (Vehicle) | 1100m (2.3m*2.3m target) |
