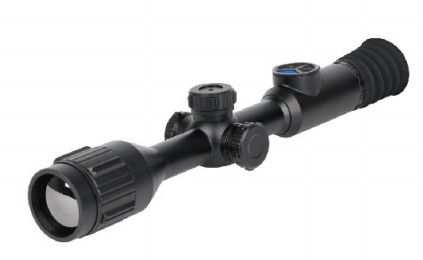

FW-RS735B Thermal Imaging Night Vision Device with ≤20mk NETD 50mm Focal Distance and IP67 Waterproof Dustproof for Enhanced Performance
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-RS735B |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Detection Type | Vanadium Oxide Uncooled Focal Plane | NETD | ≤20mk |
|---|---|---|---|
| Focal Distance | 50mm | Display | 1440*1080 OLED |
| Highlight | FW-RS735B Night Vision Device,Night Vision Device 1440*1080 |
||
Product Description
FW-RS735B Thermal Imaging Night Vision Device
1440*1080 OLED Display with ≤20mk NETD for Enhanced Performance
Key Features
- 384*288 Vanadium Oxide Uncooled Focal Plane
- Image WiFi transmission with built-in video recording and photo capture
- High-performance 0.49-inch color OLED display (1440*1080 resolution)
- IP67 waterproof and dustproof rating
Technical Specifications
| Detector Type | Vanadium Oxide Uncooled Focal Plane |
|---|---|
| Resolution | 384*288 |
| Pixel spacing | 12μm |
| NETD | ≤20mk@25℃ |
| Frame rate | 50Hz |
| Focal distance | 35mm |
| Minimum focus distance | 5m |
| FOV | 5.3°*4.0° |
| Image mode | White hot, black hot, red hot, iron red |
| Basic magnification | 4.65x |
| Lens aperture | F1.0 |
| Focus | Manual focus |
| Display | 0.49-inch color OLED (1440*1080 resolution) |
| Eyepiece magnification | 11.2X |
| Electronic zoom | X1.0-8.0 |
| Working time | >15h |
| Vision adjustment | -5D~+5D |
| Storage | Video, Photo |
| Protection level | IP67 |
| Working temperature | -20℃~+50℃ |
| Storage temperature | -40℃~+60℃ |
| Weight | 1100g |
| Dimensions | 368.2mm*84mm*77.2mm |
Detection & Identification Ranges
| Target | Detection Distance | Identification Distance |
|---|---|---|
| Person (1.8m*0.5m) | 2300m | 1150m |
| Vehicle (2.3m*2.3m) | 3200m | 1600m |
