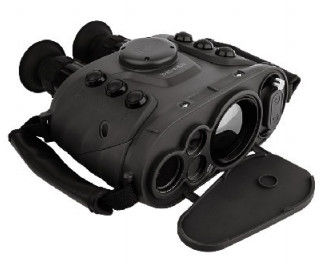

FW-S750MI Binocular Infrared Thermal Imaging Telescope with 1 Meter Drop-Resistant, 1900m Detection Distance, and 600m Identification Distance
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-S750MH |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Detection Type | Vanadium Oxide Uncooled Focal Plane | NETD | ≤40mk@30℃ |
|---|---|---|---|
| Frame Rate | 50Hz | Display | 800*600 OLED |
| Highlight | Binocular Infrared Thermal Imaging Telescope,50Hz Frame Rate Thermal Imaging Telescope,800*600 OLED Display Thermal Imaging Telescope |
||
Product Description
FW-S750MI Binocular Infrared Thermal Imaging Telescope with 800×600 OLED Display
Key Features
- 640×480 Vanadium Oxide Uncooled Focal Plane detector
- Integrated GPS, electronic compass, and laser ranging functionality
- Built-in visible light camera for evidence collection and recording
- High-resolution 800×600 OLED display for clear imaging
- Rugged IP67 waterproof and dustproof construction
- 1 meter drop-resistant design for field durability
Technical Specifications
| Detector Type | Vanadium Oxide Uncooled Focal Plane |
|---|---|
| Resolution | 384×288 |
| FOV | Standard lens: 15.2°×11.4° Extended telephoto lens: 8.6°×6.5° |
| NETD | ≤40mk@30℃ |
| Frame rate | 50Hz |
| Image polarity | White/black |
| CCD FOV | 9°×6.75° |
| CCD Imager | 1/3'' CCD, Pixel 795(H)×596(V) |
| Image enhancement/filtering | Yes |
| Wavelength | 8-14μm |
| Focus | Manual focus |
| Display | OLED, resolution 800×600 |
| Electronic zoom | ×2, ×3, ×4 |
| Battery | Lithium battery, >4h operation |
| Positioning system | GPS (latitude/longitude accuracy 5m, altitude 10m) |
| Electronic compass | Angle measurement accuracy (azimuth 0.6°, elevation 0.3°) |
| Protection level | IP67 |
| Working Temperature | -30℃ to +50℃ |
| Storage temperature | -40℃ to +70℃ |
| Weight | 1.6kg |
| Size | 200mm × 195mm × 85mm |
| Interface | External power supply, external video PAL, USB interface, 1/4''-20-UNC installation interface |
Detection Performance
| Target | Size | Detection Distance | Identification Distance |
|---|---|---|---|
| Person | 1.8m × 0.5m | 1900m | 600m |
| Vehicle | 2.3m × 2.3m | 2700m | 900m |
