FW-S750MH Binocular Infrared Thermal Imaging Telescope with 1 Meter Drop-Resistant, 384*288 Resolution, and Lithium Battery >4h

  • FW-S750MH Binocular Infrared Thermal Imaging Telescope with 1 Meter Drop-Resistant, 384*288 Resolution, and Lithium Battery >4h
  • FW-S750MH Binocular Infrared Thermal Imaging Telescope with 1 Meter Drop-Resistant, 384*288 Resolution, and Lithium Battery >4h
Place of Origin China
Brand Name Forward
Model Number FW-S750MH
Minimum Order Quantity 1 set
Delivery Time 5-8 work days
Payment Terms L/C,T/T
Supply Ability 100 pcs/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Detection Type Vanadium Oxide Uncooled Focal Plane NETD ≤40mk@30℃
Frame Rate 50Hz Display 800*600 OLED
Highlight

Binocular infrared thermal imaging telescope

,

FW-S750MH Thermal Imaging Telescope
Leave a Message
Product Description

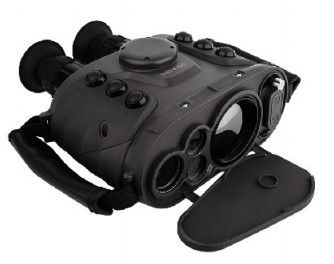

FW-S750MH Binocular Infrared Thermal Imaging Telescope
Key Features
  • 384*288 Vanadium Oxide Uncooled Focal Plane detector
  • Integrated GPS, electronic compass, and laser ranging functions
  • Built-in visible light camera for evidence collection and recording
  • High-resolution 800*600 OLED display
  • IP67 waterproof and dustproof rating with 1-meter drop resistance
Technical Specifications
Detector Type Vanadium Oxide Uncooled Focal Plane
Resolution 384*288
Field of View Standard lens: 9°*6.75°
Extended telephoto lens: 5.1°*3.8°
NETD ≤40mk@30℃
Frame Rate 50Hz
Image Polarity White/black
CCD Imager 1/3'' CCD, Pixel 795(H)*596(V)
Wavelength 8-14μm
Display OLED, resolution 800*600
Battery Lithium battery (>4h operation)
Protection Level IP67
Operating Temperature -30℃ to +50℃
Weight 1.6kg
Dimensions 200mm * 195mm * 85mm
Performance Metrics
Detection Distance Person (1.8m*0.5m): 1900m
Vehicle (2.3m*2.3m): 2700m
Identification Distance Person (1.8m*0.5m): 600m
Vehicle (2.3m*2.3m): 900m
FW-S750MH Binocular Infrared Thermal Imaging Telescope with 1 Meter Drop-Resistant, 384*288 Resolution, and Lithium Battery >4h 0
