FW-S750R Binocular Infrared Thermal Imaging Telescope with 50mm Focal Distance, Color LCOS 1440×1080 Display, and ≤35mk@30℃ NETD for Clear Imaging

  • FW-S750R Binocular Infrared Thermal Imaging Telescope with 50mm Focal Distance, Color LCOS 1440×1080 Display, and ≤35mk@30℃ NETD for Clear Imaging
  • FW-S750R Binocular Infrared Thermal Imaging Telescope with 50mm Focal Distance, Color LCOS 1440×1080 Display, and ≤35mk@30℃ NETD for Clear Imaging
Place of Origin China
Brand Name Forward
Model Number FW-S750R
Minimum Order Quantity 1 set
Delivery Time 5-8 work days
Payment Terms L/C,T/T
Supply Ability 100 pcs/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Detection Type Vanadium Oxide Uncooled Focal Plane Display Color LCOS 1440×1080
NETD ≤35mk@30℃ Focal Distance 50mm
Highlight

Clear Imaging Thermal Imaging Telescope

,

50mm Thermal Imaging Telescope

,

FW-S750R Thermal Imaging Telescope
Leave a Message
Product Description

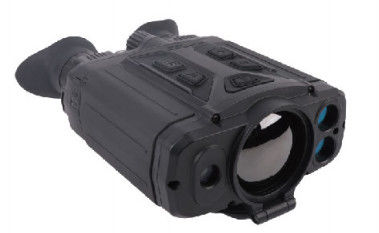

50mm Focal Distance FW-S750R Binocular Infrared Thermal Imaging Telescope
Key Features
  • 384*288 Vanadium Oxide Uncooled Focal Plane
  • 1000m precise laser distance measurement with GPS, electronic compass, and laser ranging function
  • High resolution 1440*1080 high-performance display
  • IP66 waterproof and dustproof rating for operation in various environments
Technical Specifications
Detector Type Vanadium Oxide Uncooled Focal Plane
Resolution 640*512
Pixel spacing 12μm
NETD ≤35mk@30℃
Laser Distance Measurement 1000m±1m
Focal distance 50mm
FOV 5.3°*4.0°
Image mode White hot, black hot, red hot
Minimum focus distance 3m
Focus Manual focus
Display 0.39inch, color OLED, resolution 1440*1080
Image Correction Automatic/Manual
Electronic zoom X1.0-8.0
Battery Lithium battery, >5h operation
Picture Mode Glimmer, Infrared, Fusion
Image color label White heat, black heat, iron red, red heat, ocean, desert, forest, etc.
Wavelength 8-14μm
Interpupillary distance, diopter adjustment 56-71mm, -5D~+5D
Protection level IP66
WIFI Yes
Working Temperature -30℃~+55℃
Storage temperature -40℃~+70℃
Weight ≤600g (without battery)
Size 211mm*145mm*74mm
External power supply DC5V/2A (USB Type-C)
External Interface HDMI, USB, 1/4"-20-UNC
Detection Performance
Target Mode Detection Distance Identification Distance
Person (1.7m*0.5m) Glimmer 3200m 1400m
Infrared 2000m 2000m
Fusion 2000m 2000m
Car (2.3m*2.3m) Glimmer 5100m 1400m
Infrared 3200m 2000m
Fusion 3200m 2000m
