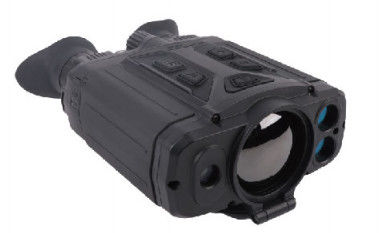

FW-S715 Binocular Infrared Thermal Imaging Telescope with Color LCOS 1440×1080 Display, ≤35mk@30℃ NETD, and 50mm Focal Distance
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-S715 |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Detection Type | Vanadium Oxide Uncooled Focal Plane | Display | Color LCOS 1440×1080 |
|---|---|---|---|
| NETD | ≤35mk@30℃ | Focal Distance | 50mm |
| Highlight | Vanadium Oxide Thermal Imaging Telescope,Uncooled Focal Plane Thermal Imaging Telescope,Binocular Infrared Thermal Imaging Telescope |
||
Product Description
Vanadium Oxide Uncooled Focal Plane FW-S715 Binocular Infrared Thermal Imaging Telescope
Product Features
- 640*512 Vanadium Oxide Uncooled Focal Plane detector
- Integrated 1000m precise laser distance measurement with GPS and electronic compass
- High resolution 1440*1080 display for superior image clarity
- IP66 waterproof and dustproof rating for operation in harsh environments
Technical Specifications
| Detector Type | Vanadium Oxide Uncooled Focal Plane |
|---|---|
| Resolution | 640*512 |
| Pixel Spacing | 12μm |
| NETD | ≤35mk@30℃ |
| Laser Distance Measurement | 1000m±1m |
| Focal Distance | 50mm |
| Field of View | 8.8°*5.7° |
| Image Modes | White hot, black hot, red hot |
| Minimum Focus Distance | 3m |
| Focus Type | Manual focus |
| Display | 0.39" color OLED, 1440*1080 resolution |
| Image Correction | Automatic/Manual |
| Electronic Zoom | 1.0-8.0* |
| Battery | Lithium battery (>5h operation) |
| Picture Modes | Glimmer, Infrared, Fusion |
| Color Palettes | White heat, black heat, iron red, red heat, ocean, desert, forest |
| Wavelength | 8-14μm |
| Adjustments | Interpupillary distance 56-71mm, diopter -5D~+5D |
| Protection Rating | IP66 |
| Wireless | WiFi enabled |
| Operating Temperature | -30℃ to +55℃ |
| Storage Temperature | -40℃ to +70℃ |
| Weight | ≤600g (without battery) |
| Dimensions | 211mm*145mm*74mm |
| Power Supply | DC5V/2A (USB Type-C) |
| Interfaces | HDMI, USB, 1/4"-20-UNC |
Detection Performance
| Target | Detection Mode | Detection Distance | Identification Distance |
|---|---|---|---|
| Person (1.7m*0.5m) | Glimmer | 3200m | 1400m |
| Infrared | 2000m | 2000m | |
| Fusion | 2000m | 2000m | |
| Vehicle (2.3m*2.3m) | Glimmer | 5100m | 1400m |
| Infrared | 3200m | 2000m | |
| Fusion | 3200m | 2000m |
