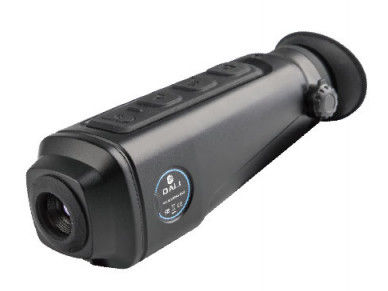

FW-S240 Thermal Imaging Monocular with 15mm Focal Distance WIFI Image Transmission and 4 Pseudo-Color Modes

  • FW-S240 Thermal Imaging Monocular with 15mm Focal Distance WIFI Image Transmission and 4 Pseudo-Color Modes
  • FW-S240 Thermal Imaging Monocular with 15mm Focal Distance WIFI Image Transmission and 4 Pseudo-Color Modes
Place of Origin China
Brand Name Forward
Model Number FW-S240
Minimum Order Quantity 1 set
Delivery Time 5-8 work days
Payment Terms L/C,T/T
Supply Ability 100 pcs/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Detection Type Vanadium Oxide Uncooled Focal Plane Display Color LCOS 800×600
NETD ≤30mk@25℃ Focal Distance 15mm
Highlight

FW-S240 Monocular

,

Monocular infrared thermal imaging telescope
Leave a Message
Product Description
FW-S240 Monocular Infrared Thermal Imaging Telescope
Key Features
  • 384*288 Vanadium Oxide Uncooled Focal Plane for high-resolution thermal imaging
  • WIFI image transmission with mobile app for real-time viewing, recording, photography, and playback
  • 50Hz high frame rate with 4 pseudo-color modes for enhanced observation
  • IP66 waterproof and dustproof with 1 meter drop resistance
Technical Specifications
Detector Type Vanadium Oxide Uncooled Focal Plane
Resolution 384*288
NETD ≤30mk@25℃
Frame rate 50Hz
Focal distance 15mm
FOV 17.6°*13.2°
Display Color OLED, 800*600 resolution
Electronic zoom 1.0-4.0X
Battery Lithium battery, 10h operation
Basic magnification 1.95x~7.8x
Focus range 1m~∞
Wavelength 8-14μm
Storage 32G
Protection level IP66
Drop resistance 1m
Working Temperature -20℃~+50℃
Weight ≤330g
Size 185mm*60mm*60mm
WIFI USB Type-C
Video Pal
Detection Performance
People (1.8m*0.5m): Detection 1000m / Identification 345m
Vehicle (2.3m*2.3m): Detection 1400m / Identification 480m
