FW-S256G Thermal Imaging Monocular with IP66 Waterproof and Dustproof 1 Meter Drop-Resistant and 640*512 Resolution Infrared Thermal Imaging Telescope
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-S256G |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Detection Type | Vanadium Oxide Uncooled Focal Plane | NETD | ≤40mk@F1.0 |
|---|---|---|---|
| Focal Distance | 35mm | Display | 1440*1080 OLED |
| Highlight | Monocular infrared thermal imaging telescope |
||
Product Description

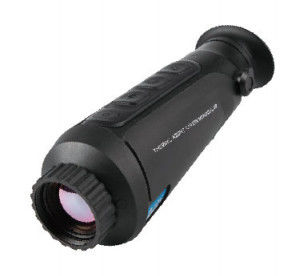

FW-S256G Monocular Infrared Thermal Imaging Telescope
Key Features
- 640*512 Vanadium Oxide Uncooled Focal Plane
- Integrated GPS, electronic compass, and laser ranging functions
- Built-in visible light camera for evidence collection and recording
- High-resolution 1440*1080 display for superior image quality
- Rugged IP66 waterproof and dustproof design with 1-meter drop resistance
Technical Specifications
| Detector Type | Vanadium Oxide Uncooled Focal Plane |
|---|---|
| Resolution | 640*512 |
| Pixel Spacing | 12μm |
| NETD | ≤40mk@30℃ |
| Frame Rate | 50Hz |
| Focal Distance | 35mm |
| FOV | 17.7°*13.3° |
| Image Modes | White hot, black hot, red hot, iron red |
| Basic Magnification | 1.38x |
| Image Transmission | WIFI real-time transmission with mobile app support |
| Focus | Manual focus |
| Display | 0.39-inch color OLED, 1440*1080 resolution |
| Accuracy | ±1m |
| Electronic Zoom | X1.0-4.0 |
| Battery | Lithium battery (>4h operation) |
| Focus Range | 1m~∞ |
| Wavelength | 8-14μm |
| Storage | 32G |
| Protection Level | IP66 |
| Drop Resistance | 1m |
| Operating Temperature | -20℃ to +50℃ |
| Storage Temperature | -40℃ to +60℃ |
| Weight | 0.45kg |
| Dimensions | 200mm*71mm*71mm |
| Power | DC5V/2A (Micro USB) |
Performance Metrics
| Detection Distance |
Person (1.8m*0.5m): 1000m Vehicle (2.3m*2.3m): 1500m |
|---|---|
| Identification Distance |
Person (1.8m*0.5m): 500m Vehicle (2.3m*2.3m): 790m |
