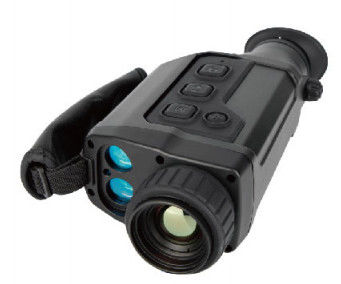

FW-S236X Thermal Imaging Monocular with Color LCOS 1280×960 Display ≤40mk@F1.0 NETD and 35mm Focal Distance Infrared Thermal Imaging Telescope
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-S236X |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Detection Type | Vanadium Oxide Uncooled Focal Plane | Display | Color LCOS 1280×960 |
|---|---|---|---|
| NETD | ≤40mk@F1.0 | Focal Distance | 35mm |
| Highlight | FW-S236X Thermal Imaging Monocular,Monocular infrared thermal imaging telescope |
||
Product Description
FW-S236X Monocular Infrared Thermal Imaging Telescope
Key Features
- 384*288 Vanadium Oxide Uncooled Focal Plane
- Integrated GPS, electronic compass, and laser ranging functions
- High resolution 1280*960 display with superior performance
- IP66 waterproof and dustproof rating with 1-meter drop resistance
Technical Specifications
| Detector Type | Vanadium Oxide Uncooled Focal Plane |
|---|---|
| Resolution | 640*512 |
| Pixel spacing | 12μm |
| NETD | ≤40mk@F1.0 |
| Frame rate | 50Hz |
| Focal distance | 35mm |
| FOV | 12.5°*10° |
| Image mode | White hot, black hot, red hot |
| Minimum focus distance | 3m |
| Focus | Manual focus |
| Display | 0.49inch, color OLED, resolution 1440*1080 |
| Accuracy | ±1m |
| Electronic zoom | X1.0-4.0 |
| Battery | Lithium battery, >6h operation |
| Basic magnification | 1.95x~7.8x |
| Focus range | 1m~∞ |
| Wavelength | 8-14μm |
| Storage | 32G |
| Protection level | IP66 |
| Drop resistance | 1m |
| Working Temperature | -20℃~+50℃ |
| Storage temperature | -40℃~+70℃ |
| Weight | ≤580g |
| Size | 220mm*97mm*60mm |
| WIFI | USB Type-C |
Performance Metrics
Detection Distance:
- Person (1.8m*0.5m): 1400m
- Vehicle (2.3m*2.3m): 2200m
Identification Distance:
- Person (1.8m*0.5m): 700m
- Vehicle (2.3m*2.3m): 1100m
