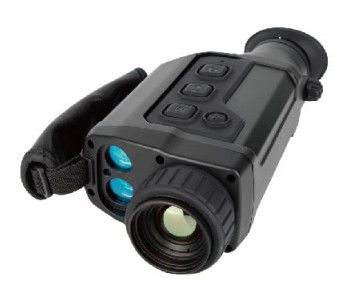

Monocular Infrared Thermal Imaging Telescope with 35mm Focal Distance, Color LCOS Display 1280×960, and IP66 Waterproof and Dustproof

  • Monocular Infrared Thermal Imaging Telescope with 35mm Focal Distance, Color LCOS Display 1280×960, and IP66 Waterproof and Dustproof
  • Monocular Infrared Thermal Imaging Telescope with 35mm Focal Distance, Color LCOS Display 1280×960, and IP66 Waterproof and Dustproof
Place of Origin China
Brand Name Forward
Model Number FW-S236
Minimum Order Quantity 1 set
Delivery Time 5-8 work days
Payment Terms L/C,T/T
Supply Ability 100 pcs/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Detection Type Vanadium Oxide Uncooled Focal Plane Display Color LCOS 1280×960
NETD ≤40mk@F1.0 Focal Distance 35mm
Highlight

1280×960 Thermal Imaging Monocular

,

35mm Focal Distance Thermal Imaging Monocular

,

Focal Color Thermal Imaging Monocular
Leave a Message
Product Description
Monocular Infrared Thermal Imaging Telescope With 35mm Focal Distance And Color LCOS Display 1280*960
Features of FW-S236 Monocular Infrared Thermal Imaging Telescope
  • 384*288 Vanadium Oxide Uncooled Focal Plane
  • GPS, electronic compass, and laser ranging function
  • High resolution 1280*960 with high-performance display
  • IP66 waterproof and dustproof, 1 meter drop-resistant
Specifications of FW-S236 Monocular Infrared Thermal Imaging Telescope
Detector Type Vanadium Oxide Uncooled Focal Plane
Resolution 384*288
Pixel spacing 12μm
NETD ≤40mk@F1.0
Frame rate 50Hz
Focal distance 25mm
FOV 7.5°*5.7°
Image mode White hot, black hot, red hot
Minimum focus distance 3m
Focus Manual focus
Display 0.49inch, color OLED, resolution 1440*1080
Accuracy ±1m
Electronic zoom X1.0-4.0
Battery Lithium battery, >6h
Basic magnification 3.25x~13x
Focus range 1m~∞
Wavelength 8-14μm
Storage 32G
Protection level IP66
Drop resistance 1m
Working Temperature -20℃~+50℃
Storage temperature -40℃~+70℃
Weight ≤580g
Size 220mm*97mm*60mm
WIFI USB Type-C
Detection distance Person (1.8m*0.5m): 1400m
Car (2.3m*2.3m): 2200m
Identification distance Person (1.8m*0.5m): 700m
Car (2.3m*2.3m): 1100m
Monocular Infrared Thermal Imaging Telescope with 35mm Focal Distance, Color LCOS Display 1280×960, and IP66 Waterproof and Dustproof 0
