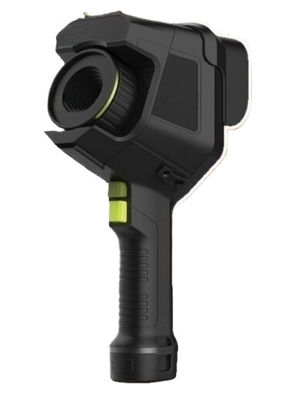

FW-HI68 Handheld Thermal Imager with 400×300 Resolution 640×512 Thermal Imaging and 4.3-inch Touch Screen
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-HI68 |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Detector Type | Uncooled Vanadium Oxide Focal Plane Detector | Resolution | 400×300 |
|---|---|---|---|
| Pixel Pitch | 12μm | Temperature Measurement Range | -20℃～+650℃ |
| Spectral Range | 8μm - 14μm | ||
| Highlight | Uncooled Vanadium Oxide Detector Thermal Imager,12μm Pixel Pitch Thermal Imager,Handheld Thermal Imager |
||
Product Description
FW-HI68 Handheld Thermal Imager with 12μm Pixel Pitch and Uncooled Vanadium Oxide Detector
Product Description
The FW-HI68 is a portable thermal imaging device that combines high precision, rapid response, and non-contact temperature measurement capabilities. Utilizing advanced infrared sensing technology, it's ideal for various applications including human body temperature screening, industrial inspections, medical assistance, and public health monitoring.
Key Features
- 4.3-inch touch screen with multiple temperature measurement modes (point, line, area)
- Wide temperature range up to 650℃ with ±2℃ or ±2% accuracy
- High-resolution thermal imaging (640×512) with 8MP visible light camera
- 0.5m minimum focus distance with accurate measurements up to 5m
- IP54 protection rating for use in light rain conditions
- Fast-charging lithium battery (full charge in 2.5 hours)
- 256GB storage capacity for extensive video and image recording
- Over 300,000 temperature measurement points for detailed thermal analysis
- Interchangeable lens system (0.5x, 2x, 3x options available)
Technical Specifications
Thermal Imaging Parameters
| Detector Type | Uncooled Vanadium Oxide Focal Plane Detector |
| Resolution | 640×512 |
| Pixel Pitch | 12μm |
| Spectral Range | 8μm - 14μm |
| NETD | ≤40mk@f/1.0 |
| Lens and FOV | 10mm; Horizontal:25°; Vertical:18° |
| Focus Modes | Fixed focus, Manual focus, Electric focus, Automatic focus, Laser assisted focus |
| Minimum Focus Distance | 0.5m |
| Noise Reduction | 2D/3D Noise Reduction |
| Temperature Range | -20℃ to +650℃ |
| Measurement Accuracy | Max(±2℃,±2%) |
| Measurement Methods | Central point, hot/cold spots; 10 point, 10 line, and 10 area measurements |
| Color Palettes | 8 options: white heat, black heat, fusion, rainbow, golden autumn, midday, iron red, amber |
Visible Light Parameters
| Resolution | 8MP |
| Focus Mode | Fixed focus |
| Display | 4.3-inch LCD touch screen (800×600 resolution) |
General Specifications
| Digital Zoom | 1-8x |
| Alerts | Buzzer sound alarm |
| Storage | MicroSD card support (up to 256GB) |
| Connectivity | Wi-Fi, Bluetooth, USB Type-C |
| Power | Removable lithium battery or DC5V power supply |
| Battery Life | ≥4 hours standby time |
| Operating Temperature | 20℃ to +50℃ |
| Protection Rating | IP54 |
| Dimensions | 284.5mm × 127mm × 125mm |
| Weight | ≤1.2kg |
| Durability | 2m drop resistance |
| Mounting | Optional tripod with 1/4 inch thread interface |
