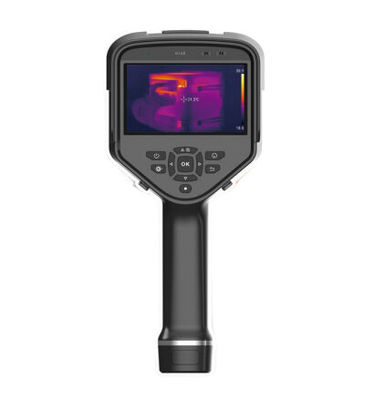

FW-HI48 Handheld Thermal Imager with 8μm - 14μm Spectral Range 400×300 Resolution and 12μm Pixel Pitch

  • FW-HI48 Handheld Thermal Imager with 8μm - 14μm Spectral Range 400×300 Resolution and 12μm Pixel Pitch
  • FW-HI48 Handheld Thermal Imager with 8μm - 14μm Spectral Range 400×300 Resolution and 12μm Pixel Pitch
Place of Origin China
Brand Name Forward
Model Number FW-HI48
Minimum Order Quantity 1 set
Delivery Time 5-8 work days
Payment Terms L/C,T/T
Supply Ability 100 pcs/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Detector Type Uncooled Vanadium Oxide Focal Plane Detector Resolution 400×300
Pixel Pitch 12μm Temperature Measurement Range -20℃～+650℃
Spectral Range 8μm - 14μm
Highlight

Uncooled Vanadium Oxide Thermal Imager

,

8μm Spectral Range Thermal Imager

,

14μm Spectral Range Thermal Imager
Leave a Message
Product Description
FW-HI48 Handheld Thermal Imager with Uncooled Vanadium Oxide Focal Plane Detector
Product Description

The FW-HI48 is a portable thermal imaging device that combines high precision, fast response, and non-contact temperature measurement capabilities. Utilizing advanced infrared sensing technology, this thermal imager is suitable for various applications including human body temperature screening, industrial testing, medical assistance, and public health monitoring.

Key Features
  • 4.3-inch touch screen with multiple temperature measurement modes (point, line, frame)
  • Wide temperature measurement range up to 650℃ with ±2℃ or ±2% accuracy
  • High-resolution thermal imaging (640×512) with 8MP visible light camera
  • 0.5m minimum focus distance with accurate measurements up to 5m
  • IP54 protection rating for use in light rain environments
  • Large-capacity lithium battery with fast charging (full charge in 2.5 hours)
  • Supports up to 256GB storage for extensive video and image capture
  • Over 300,000 temperature measurement points for detailed thermal analysis
  • Interchangeable lens system supporting 0.5x, 2x, and 3x lens options
Technical Specifications
Thermal Imaging Parameters
Detector Type Uncooled Vanadium Oxide Focal Plane Detector
Resolution 400×300
Pixel Pitch 12μm
Spectral Range 8μm - 14μm
NETD ≤40mk@f/1.0
Lens and FOV 10mm; Horizontal:25°; Vertical:18°
Focus Mode Fixed focus; Manual focus; Electric focus, automatic focus, laser assisted focus
Close shooting distance 0.5m
Noise Reduction 2D/3D Noise Reduction
Temperature measurement range 20℃ to +650℃
Temperature measurement error Max(±2℃,±2%)
Temperature measurement method Central point, hot and cold spots; 10 point temperature measurement, 10 line temperature measurement, 10 area temperature measurement
Color Palette Supports 8 pseudo colors: white heat, black heat, fusion, rainbow, golden autumn, midday, iron red, amber
Visible Light Parameters
Resolution 8MP
Focus Mode Fixed focus
Display resolution 800×600
Display Size 4.3 inches, LCD touch screen
Additional Parameters
Digital zoom 1-8x
Sound and light warning Support buzzer sound alarm
Storage function Support MicroSD storage card, up to 256G
Fault Detection Memory card status detection; storage space detection
Machine function Support laser pointer; support Wi-Fi; support Bluetooth
Alarm linkage Support over-temperature alarm linkage capture, video recording and buzzer alarm
USB interface Type C
Power supply mode Built-in removable lithium battery or DC5V power supply
Standby time ≥4h
Working Temperature -20℃ to +50℃
Protection level IP54
Size 284.5mm×127mm×125mm
Weight ≤1.2kg
Bracket Optional tripod with 1/4 inch thread interface
Drop height 2m bare metal drop
FW-HI48 Handheld Thermal Imager with 8μm - 14μm Spectral Range 400×300 Resolution and 12μm Pixel Pitch 0 FW-HI48 Handheld Thermal Imager with 8μm - 14μm Spectral Range 400×300 Resolution and 12μm Pixel Pitch 1
