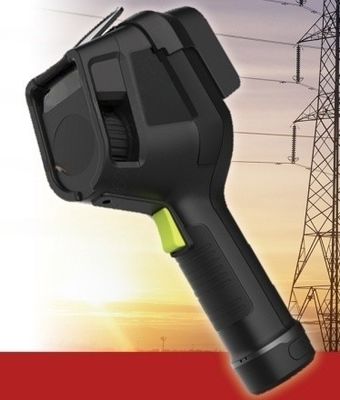

FW-HI45 Handheld Thermal Imager with 400×300 Resolution and -20℃～+550℃ Temperature Range Featuring 3.5-inch Touch Screen

  • FW-HI45 Handheld Thermal Imager with 400×300 Resolution and -20℃～+550℃ Temperature Range Featuring 3.5-inch Touch Screen
  • FW-HI45 Handheld Thermal Imager with 400×300 Resolution and -20℃～+550℃ Temperature Range Featuring 3.5-inch Touch Screen
Place of Origin China
Brand Name Forward
Model Number FW-HI45
Minimum Order Quantity 1 set
Delivery Time 5-8 work days
Payment Terms L/C,T/T
Supply Ability 100 pcs/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Detector Type Uncooled Vanadium Oxide Focal Plane Detector Resolution 400×300
Pixel Pitch 12μm Temperature Measurement Range -20℃～+550℃
Spectral Range 8μm - 14μm
Highlight

Uncooled Thermal Imager

,

400×300 Thermal Imager

,

Handheld Thermal Imager
Leave a Message
Product Description
Uncooled Vanadium Oxide Focal Plane Detector FW-HI45 Handheld Thermal Imager with 400×300 Resolution
Product Description

The FW-HI45 Handheld Thermal Imager is a portable temperature measurement tool that combines high precision, fast response, and non-contact temperature measurement capabilities. Utilizing advanced infrared sensing technology, it's ideal for various applications including human body temperature screening, object surface temperature detection, family health monitoring, industrial testing, medical assistance, and public place epidemic prevention.

Key Features
  • 3.5-inch touch screen with support for point, line, and frame temperature measurement rules
  • Wide temperature measurement range up to 550℃ with ±2℃ or ±2% accuracy for industrial-grade requirements
  • High-resolution thermal imaging (400×300) with 5 million visible light pixels
  • 0.5m close-up distance with effective temperature accuracy within 5m
  • IP54 protection rating for use in light rain environments
  • Large-capacity lithium battery with fast charging capability (full charge in 2.5 hours)
  • Supports 256GB storage for hundreds of hours of video and tens of thousands of thermal images
Technical Specifications
Thermal Imaging Parameters
Detector Type Uncooled Vanadium Oxide Focal Plane Detector
Resolution 400×300
Pixel Pitch 12μm
Spectral Range 8μm - 14μm
NETD ≤40mk@f/1.0
Lens and FOV 8mm; Horizontal:33°; Vertical:25° | 10mm; Horizontal:25°; Vertical:18°
Focus Mode Fixed focus; Manual focus
Close shooting distance 0.5m
Noise Reduction 2D/3D Noise Reduction
Temperature measurement range -20℃ to +550℃
Temperature measurement error Max(±2℃,±2%)
Temperature measurement method Central point, hot and cold spots; 10 point temperature measurement, 10 line temperature measurement, 10 area temperature measurement
Color Palette Supports 8 pseudo colors: white heat, black heat, fusion, rainbow, golden autumn, midday, iron red, amber
Visible Light Parameters
Resolution 500w
Focus Mode Fixed focus
Display resolution 640×480
Display Size 3.5 inches, LCD touch screen
Other Parameters
Digital zoom 1-8x
Sound and light warning Support buzzer sound alarm
Storage function Support MicroSD storage card, up to 256G
Fault Detection Memory card status detection; storage space detection
Machine function Support laser pointer; support Wi-Fi; support Bluetooth
Alarm linkage Support over-temperature alarm linkage capture, video recording and buzzer alarm
USB interface Type C
Power supply mode Built-in removable lithium battery or DC5V power supply
Standby time ≥5h
Working Temperature -20℃ to +50℃
Protection level IP54
Size 249mm×103mm×104.8mm
Weight ≤650g
Bracket Optional tripod with 1/4 inch thread interface
Drop height 2m bare metal drop
FW-HI45 Handheld Thermal Imager with 400×300 Resolution and -20℃～+550℃ Temperature Range Featuring 3.5-inch Touch Screen 0 FW-HI45 Handheld Thermal Imager with 400×300 Resolution and -20℃～+550℃ Temperature Range Featuring 3.5-inch Touch Screen 1
