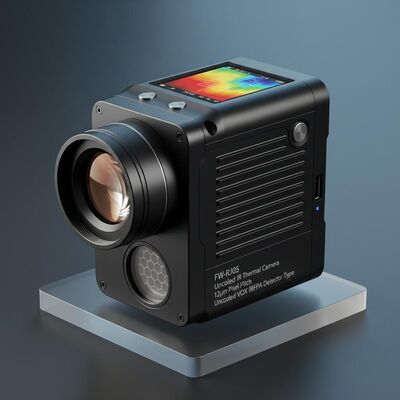

FW-RJ05 Uncooled Infrared Thermal Camera with 12μm Pixel Pitch Uncooled VOx IRFPA Detector and 1280×1024 Resolution

  • FW-RJ05 Uncooled Infrared Thermal Camera with 12μm Pixel Pitch Uncooled VOx IRFPA Detector and 1280×1024 Resolution
  • FW-RJ05 Uncooled Infrared Thermal Camera with 12μm Pixel Pitch Uncooled VOx IRFPA Detector and 1280×1024 Resolution
  • FW-RJ05 Uncooled Infrared Thermal Camera with 12μm Pixel Pitch Uncooled VOx IRFPA Detector and 1280×1024 Resolution
Place of Origin China
Brand Name Forward
Model Number FW-RJ05
Minimum Order Quantity 1 set
Delivery Time 5-8 work days
Payment Terms L/C,T/T
Supply Ability 100 pcs/year
Product Details
Detector Type Uncooled VOx IRFPA Resolution 1280×1024
Pixel Pitch 12μm Spectral Range 8～14μm
NETD ≤50mk
Highlight

12μm Pixel Pitch Thermal Camera

,

Uncooled VOx IRFPA Detector Thermal Camera

,

Uncooled Infrared Thermal Camera
Leave a Message
Product Description
FW-RJ05 Uncooled Infrared Thermal Camera
12μm Pixel Pitch with Uncooled VOx IRFPA Detector Technology
Product Overview
The FW-RJ05 is an advanced photoelectric device utilizing infrared thermal imaging technology. It detects infrared radiation emitted from object surfaces and converts it into visual temperature distribution images without requiring low-temperature refrigeration. This lightweight, fast-response thermal camera offers exceptional cost performance for diverse applications.
Key Applications
Industrial detection, security monitoring, firefighting and disaster relief, medical diagnosis, and scientific research experiments.
Technical Features
  • High resolution: 1280×1024 with 12μm pixel pitch
  • Low NETD: ≤50mk@25℃
  • Digital video outputs: Cameralink and SDI optional
  • Long-range continuous zoom lens for distant observation
  • Enables high-performance, high-resolution system integrations
  • Customization services available from professional technical team
Technical Specifications
Parameter Specification
Detector Type Uncooled VOx IRFPA
Resolution 1280×1024
Pixel Pitch 12μm
Spectral Range 8～14μm
NETD ≤50mk
Startup Time ≤10S
Digital Video Output Cameralink / SDI
Communication Interface RS422
Frame Rate 30Hz
Input Voltage DC 10 - 25V
Typical Consumption @25℃ ≤ 2.5W@12V
Polarization White hot / Black hot
Image Noise Reduction Digital filter noise reduction
Digital Zoom 1-8× continuous (0.1× step)
Image Optimization ON / OFF
Reticle Display Show / Hide / Move
Operating Temperature -40℃～＋60℃
Storage Temperature -45℃～＋70℃
Image Mirroring Left to right / Up to down / Diagonal
Image Sync External sync signal 30Hz in LVDS mode
Reset / Save Factory Reset / Save current settings
Humidity 5% to 95%, non-condensing
Vibration 5-55-5Hz, peak value 0.75mm, 3 axes
Shock 100g, half-sine wave, 1ms, 3 axes (500g optional)
Brightness & Contrast Adjustment Manual / Auto
Size 45mm×45mm×43mm
Weight ≤ 150g
Non-uniformity Correction Manual correction / background correction / blind pixel collection / automatic correction ON / OFF
