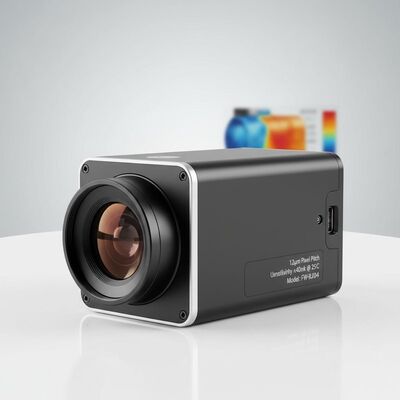

FW-RJ04 Uncooled Infrared Thermal Camera with 12μm Pixel Pitch, 640×512 Resolution and NETD ≤40mk@25℃ for Precise Detection
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-RJ04 |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Product Details
| Detector Type | Uncooled VOx IRFPA | Resolution | 640×512 |
|---|---|---|---|
| Pixel Pitch | 12μm | Spectral Range | 8～12μm |
| NETD | ≤40mk@25℃ | ||
| Highlight | 25C Uncooled Infrared Thermal Camera,High Sensitivity Uncooled Infrared Thermal Camera,Precise Detection Uncooled Infrared Thermal Camera |
||
Product Description
FW-RJ04 Uncooled Infrared Thermal Camera
The FW-RJ04 is an advanced photoelectric device utilizing infrared thermal imaging technology. It detects infrared radiation emitted from object surfaces and converts it into visual temperature distribution images without requiring low-temperature refrigeration. Featuring lightweight construction, rapid response, and exceptional cost-effectiveness, this thermal camera is ideal for industrial inspection, security monitoring, firefighting operations, medical diagnostics, and scientific research applications.
Key Features
- Crisp thermal imaging with 640×512 resolution
- Compact design measuring 26mm×26mm
- Low power consumption under 1.0W (DVP)
- Cameralink and DVP digital interfaces
Technical Specifications
| Detector Type | Uncooled VOx IRFPA |
|---|---|
| Resolution | 640×512 |
| Pixel Pitch | 12μm |
| Spectral Range | 8～12μm |
| NETD | ≤40mk@25℃ |
| Startup Time | ≤5S |
| Digital Video Output | Cameralink / DVP |
| Frame Rate | 50Hz/25Hz |
| Operating Temperature | -40℃～＋60℃ |
| Storage Temperature | -45℃～＋70℃ |
| Working Voltage | DC 4.5-5.5V |
| Power Consumption | ≤1.0W@25℃ (DVP) |
| Dimensions | 26mm×26mm×24mm |
| Weight | ≤29g |
Additional Capabilities
The FW-RJ04 supports polarization modes (white hot/black hot), digital zoom (1-8× continuous), image optimization, reticle display, brightness/contrast adjustment, image noise reduction, and comprehensive non-uniformity correction including manual correction, background correction, blind pixel collection, and automatic correction.
