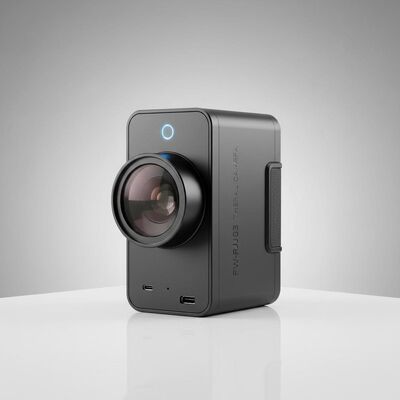

FW-RJ03 640×512 Resolution Infrared Thermal Camera with Uncooled VOx IRFPA Detector and Compact Design
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-RJ03 |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Product Details
| Detector Type | Uncooled VOx IRFPA | Resolution | 640×512 |
|---|---|---|---|
| Pixel Pitch | 12μm | Spectral Range | 8～12μm |
| NETD | ≤40mk@25℃ | ||
| Highlight | FW-RJ03 Infrared Thermal Camera,640×512 Resolution Infrared Thermal Camera |
||
Product Description
FW-RJ03 640×512 Resolution Uncooled Infrared Thermal Camera
The FW-RJ03 is a photoelectric device based on advanced infrared thermal imaging technology. It detects infrared radiation (thermal radiation) emitted from object surfaces and converts it into clear visual temperature distribution images without requiring low-temperature refrigeration systems.
Product Advantages
Featuring a lightweight design, rapid response time, and exceptional cost performance, this thermal camera is widely utilized across multiple industries including industrial inspection, security monitoring, firefighting and disaster response, medical diagnostics, and scientific research applications.
Key Features
- Crisp thermal imaging with 640×512 high resolution
- Compact design with 28mm×28mm PCB size
- Digital video output options: Cameralink or DVP
- Shutter or shutter-less configuration available
- Professional technical team provides customization services
Technical Specifications
| Detector Type | Uncooled VOx IRFPA |
| Resolution | 640×512 |
| Pixel Pitch | 12μm |
| Spectral Range | 8～12μm |
| NETD | ≤40mk@25℃ |
| Startup Time | ≤10S |
| Analog Video Output | PAL |
| Digital Video Output | Cameralink / DVP |
| Frame Rate | ≤ 50Hz |
| Polarization | White hot / Black hot |
| Digital Zoom | 1-8× continuous (0.1× step) |
| Image Optimization | ON / OFF |
| Reticle Display | Show / Hide / Move |
| Reset / Save | Factory Reset / Save current settings |
| Operating Temperature | -40℃～＋60℃ |
| Storage Temperature | -45℃～＋70℃ |
| Humidity | 5% to 95%, non-condensing |
| Vibration | 4.3g, random vibration, 3 axes |
| Shock | 500g, half-sine wave, 1ms, along the optic axis (750g optional) |
| Input Voltage | DC 7V-14V / DC5V (based on interface PCB) |
| Typical Consumption @25℃ | ≤1.2W |
| Communication Interface | RS232 / UART TTL |
| Brightness & Contrast Adjustment | Manual / Auto |
| Image Noise Reduction | Digital filter noise reduction |
| Image Mirroring | Left to right / Up to down / Diagonal |
| Image Sync | One external sync interface |
| Size | 32mm×32mm×33mm |
| Weight | ≤ 40g |
