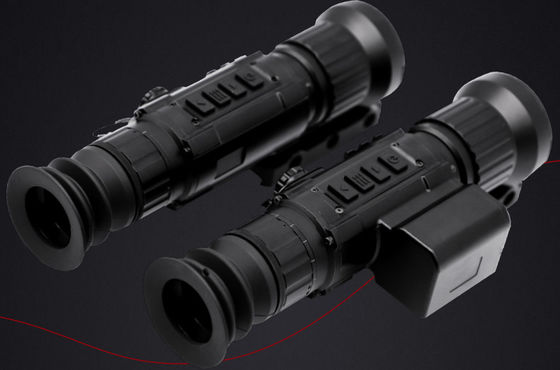

FW-S50LRF High Resolution 384×288 Infrared Thermal Imager with 50mm Large Lens and Aluminum-Magnesium Alloy Body for Professional Applications
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-S50LRF |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Dust/water Proof | IP67 | Operating Temperature | -40℃~60℃，＜90%RH |
|---|---|---|---|
| Weight | 610g | Dimensions | 210mm×75mm×85mm |
| Electron Amplification | ×1,×2,×4,×8 | Frame Rate | 50HZ |
| Highlight | Various Applications Infrared Thermal Imager,Professional Infrared Thermal Imager,Multifunctional Infrared Thermal Imager |
||
Product Description
FW-S50LRF Professional Multifunctional Infrared Thermal Imager
The RLS-L series is a high-performance civil infrared thermal imager featuring an imported 384×288 high-resolution polysilicon detector with excellent imaging capabilities. Its compact, dust-proof, and waterproof design with high-strength impact resistance makes it suitable for various environments.
Key Features
- High Resolution 384×288 with 12μm high sensitivity vanadium oxide uncooled detector
- No film design with 50Hz frame rate for smooth imaging
- 0.39 inch 1024×768 OLED display with superior picture quality
- Aluminum-magnesium alloy CNC one-piece body with excellent shock resistance
- Advanced image adjustment functions and menu support
- 50mm large lens for long detection distance and high base magnification
- Integrated range accuracy with lifetime adjustment-free calibration
- Compatible with various clamps for mainstream guide rails
- Uses replaceable 16340 batteries with standard charger for long endurance
Technical Specifications
| Detector | |
|---|---|
| Detector Type | Imported high performance polysilicon detector |
| Spectral | 7.5~14μm |
| Resolution | 384×288 |
| Frame Rate | 50HZ |
| Pixel size | 12μm |
| Lens | |
| Focal length | 50mm |
| FOV | 5.3°×4.0° |
| Digital Zoom | ×4.5 |
| Focusing | Manual Focus |
| Display | |
| Screen | 1024×768, 0.39inch OLED screen |
| Video output format | PAL |
| External Video | Support |
| Image Parameters | |
| Correction Mode | Non-stop correction |
| Luminance | Support |
| Contrast ratio | Support |
| Noise reduction | Support |
| Electron amplification | ×1,×2,×4,×8 |
| Pseudo-color mode | White Heat, sky, edge, black heat, red heat pseudo-color, iron red pseudo-color |
| Laser ranging | Up to 800m |
| Start-up drawing time | <5S |
| Cross cursor | ≥5 |
| Other functions | Picture-in-picture, Pitch Angle, electronic compass, Tilt Angle, hot-spot tracking |
| Power System | |
| Batteries | Two 16340 batteries, rechargeable, with customized plug-in rechargeable treasure |
| Environmental Adaptability | |
| Operating temperature | -40℃~+60℃,<90%RH |
| Storage temperature | -50℃-70℃ |
| Dust/water proof | IP67 |
| Physical Characteristics | |
| Weight | 610g |
| Dimensions | 210mm×75mm×85mm |
| Packaging Contents | |
| Standard fitting | Mainframe, guideway, custom external charging cable, video cable, sling, mirror cloth, brush, hexagon wrench, protective bag × 1, 16340 batteries × 2 |
Recognition/Detection Range
| Target | Recognition Range (R) | Detection Range (D) |
|---|---|---|
| People | 1900m | 760m |
| Pig/Deer | 1672m | 669m |
| Rabbit | 487m | 195m |
| Chickens | 356m | 143m |
| Sparrows | 195m | 78m |
