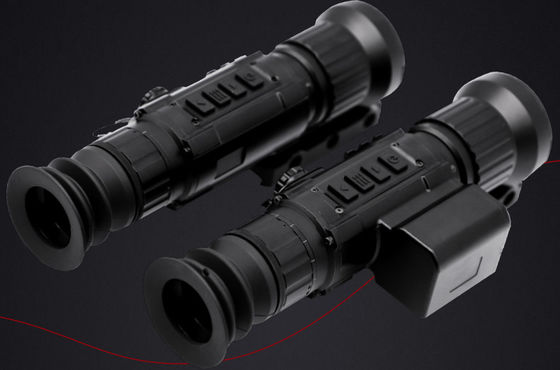

FW-AL35LRF High Resolution 640×512 Infrared Thermal Imager with 35mm Large Lens and Aluminum-Magnesium Thermal Imaging Monocular
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-AL35M |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Dust/water Proof | IP67 | Operating Temperature | -40℃~+60℃，＜90%RH |
|---|---|---|---|
| Weight | 650g | Dimensions | 209mm×75mm×85mm |
| Electron Amplification | ×1,×2,×4,×8 | Frame Rate | 50HZ |
| Highlight | 220mm×85mm Thermal Imager,50HZ Thermal Imager,Multifunction Thermal Imager |
||
Product Description
FW-AL35LRF Multifunction Infrared Thermal Imager
No Burden, More Precise Frame Rate 50HZ
Product Overview
The RLS-L series is a high-performance civil infrared thermal imager featuring an imported high-performance 640*512 high-resolution polysilicon detector with excellent imaging capabilities. Its compact, dust-proof, waterproof design with high-strength impact resistance makes it suitable for various environments.
Key Features
- High Resolution 640*512, 12μm high sensitivity vanadium oxide uncooled detector
- No film design with 50Hz frame frequency for smooth imaging
- 0.39 inch 1024*768 OLED display with fine picture quality
- Aluminum-magnesium alloy CNC one-piece molding body with excellent shock resistance
- Comprehensive image adjustment functions and menu support
- 35mm large lens for long detection distance and high base magnification
- Integrated range accuracy with lifetime adjustment-free calibration
- Multiple clamp options compatible with various guide rails
- Replaceable 16340 batteries with standard charger for extended operation
Technical Specifications
| Detector | |
|---|---|
| Detector Type | Imported high performance polysilicon detector |
| Spectral | 7.5~14μm |
| Resolution | 384*288 |
| Frame Rate | 50HZ |
| Pixel size | 12μm |
| Lens | |
| Focal length | 35mm |
| FOV | 12.5°*10.0° |
| Digital Zoom | *1.9 |
| Focusing | Manual Focus |
| Display | |
| Screen | 1024*768, 0.39inch OLED screen |
| Video output format | PAL |
| External Video | Support |
| Image Parameters | |
| Correction Mode | Non-stop correction |
| Luminance | Support |
| Contrast ratio | Support |
| Noise reduction | Support |
| Electron amplification | *1,*2,*4,*8 |
| Pseudo-color mode | White Heat, sky, edge, black heat, red heat pseudo-color, iron red pseudo-color |
| Laser ranging | Up to 800m |
| Start-up drawing time | <5S |
| Cross cursor | ≥5 |
| Other functions | Picture-in-picture, Pitch Angle, electronic compass, Tilt Angle, hot-spot tracking |
| Power System | |
| Batteries | Two 16340 batteries, rechargeable, with customized plug-in rechargeable treasure |
| Environmental Adaptability | |
| Operating temperature | -40℃~+60℃,<90%RH |
| Storage temperature | -50℃-70℃ |
| Dust/water proof | IP67 |
| Physical Characteristics | |
| Weight | 565g |
| Size | 209mm*75mm*85mm |
| Packaging Content | |
| Standard fitting | Mainframe, guideway, custom external charging cable, video cable, sling, mirror cloth, brush, hexagon wrench, protective bag * 1, 16340 batteries * 2 |
Recognition/Detection Range
People: R: 1600m | D: 640m
Pig/Deer: R: 1472m | D: 589m
Rabbit: R: 405m | D: 162m
Chickens: R: 302m | D: 121m
Sparrows: R: 167m | D: 67m
