Drone Location Module Of Anti Drone System Countermeasure Series
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Minimum Order Quantity | 1 set |
| Packaging Details | Standard Package |
| Payment Terms | L/C, T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description
Drone Location Module of Anti-drone System
Descriptions of Drone Location Module
It is a high-performance drone positioning module designed to provide high-precision positioning capabilities of drones and remote controllers for anti-drone products. It is based on digital signal processing technology for spectrum feature matching, and can reliably monitor and output multi-dimensional information such as the drone's model, position, altitude, speed and pilot position in complex electro-magnetic environments. It uses standard interfaces to simplify hardware design, reduces software development complexity, giving developers agile development experiences.
Features of Drone Location Module
- Passive detection: Only receives signal, no transmission
- Models locatable:DJI Mavic, Air, Mini,FPV, Avata
- Outputs:Drone model, S/N, longitude, latitude,altitude, velocity, pilot coordinates etc.,
-
Remote maintenance:Remotely updatable
- Agile development:Built-in software for independent work or secondary development
-
Compact design:Integrated design,weighs only 380g

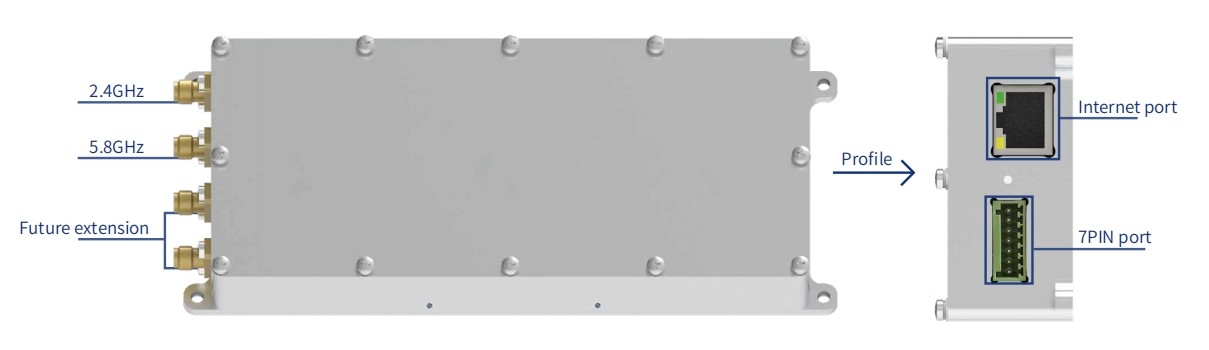

- Standard interface:SMA RF interface
- Low consumption:Power consumption less than 5w
Specifications of Drone Location Module
|
Integrated design,
weighs only 380g
|
DJI Mavic, Air, Mini, FPV, Avata
|
|
Frequency
|
2.4GHz,5.8GHz
|
|
Power consumption
|
≤5W
|
|
Power supply
|
DC 9-36V
|
|
Weight
|
～380g
|
|
Dimension
|
(L*W*H)167mm*83mm*42mm
|
|
Protection grade
|
IP65
|
|
Work temperature
|
-20℃~65℃
|
