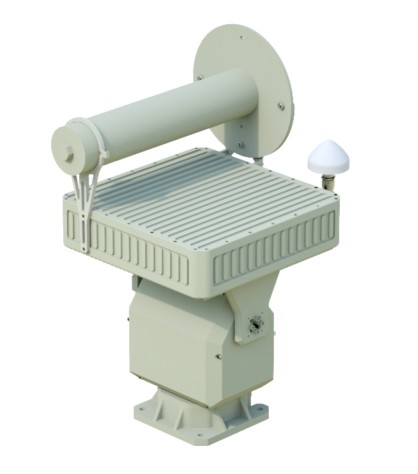

Anti Drone System (Turntable Version) | Countermeasure Series

Product Details

Place of Origin: China

Brand Name: Forward

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Packaging Details: Standard Package

Payment Terms: L/C, T/T

Supply Ability: 100 pcs/year

Get Best Price
Highlight:
Early Warning Detection Distance:
≥5Km (false Alarm Rate :10-6, Detection Probability :95%)
Minimum Detection Distance:
180m
Data Update Rate:
6s
Early Warning Detection Distance:
≥5Km (false Alarm Rate :10-6, Detection Probability :95%)
Minimum Detection Distance:
180m
Data Update Rate:
6s
Anti Drone System (Turntable Version) | Countermeasure Series

Anti Drone System (Turntable Version) | Countermeasure Series

Descriptions of Anti Drone System  Countermeasure Series

FW-XD-TLN1000T (turntable version) deceptively interferes with satellite navigation coordinate information received by UAVs using satellite navigation and positioning by regenerating satellite navigation spoofing signals in not less than two frequency bands. It can realise the functions of no-fly zone projection, directional repulsion and area denial.



Features of Anti Drone System Countermeasure Series

It has the characteristics of high Angle measurement accuracy (azimuth, pitch), low false alarm rate, stable track tracking and maneuvering flight that can adapt to targets in complex environments such as cities.

Specifications of Anti Drone System  Countermeasure Series

Supported Frequency Bands GPS L1/GLONASS L1/Beidou B1
signal power <5W (supports customisation)
action distance 5km
Continuous autonomous working capacity Autonomous and unattended operation for 24 hours
Strategy Support Directed displacement, area denial
Signalling time <3s
Signal intrusion time <10s
Power Consumption ≤75w
operating temperature -40°C ~ +70°C
Product weight <30kg
rotation speed Horizontal 0.01°~30°/S; Tilt 0.01°~12°/S (Continuously Variable Speed)
angle of rotation Horizontal 0°~360° continuous rotation; Pitch -10°~+90°;
Positioning angle analysis rate ±0.1°
Repeatability ±0.1°
communication protocols Pelco-D protocol
