Drone Detection Equipment Of Anti Drone System Countermeasure Series
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Minimum Order Quantity | 1 set |
| Packaging Details | Standard Package |
| Payment Terms | L/C, T/T |
| Supply Ability | 100 pcs/year |
Product Details
| Operating Band | 300MHz-6000MHz | Transmit Power | ≥50W |
|---|---|---|---|
| Power Supply Adaptability | Single Machine 220V±10%/ (50Hz±5%) | Signal Transmission Power | ≥ 50 W |
| Interference Response Time | ≤ 10 S | Interference Range | ≥ 3 Km |
| Power Consumption | ≤ 1800 W | ||
| Highlight | Drone Detection Equipment Countermeasure Series,Anti Drone System Countermeasure,Anti Drone System Countermeasure Series |
||
Product Description

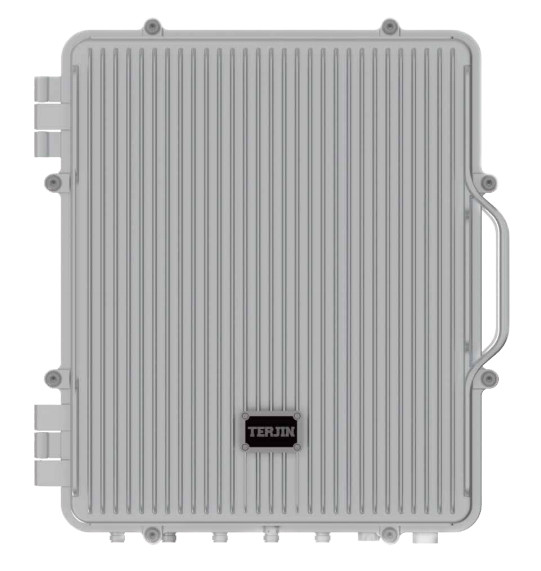

Drone Detection Equipment of anti-drone system
Descriptions of Drone Detection Equipment
It is a stationary device for drone detection and location. Through radio spectrum big data analytics, it identifies drone model, S/N code,coordinates (longitude, latitude, altitude) as well as pilot coordinates. It works independently offline or with multiple devices networking to cover a larger area. It can be interconnected with drone neutralization equipment such as radio jammers, GNSS spoofers etc.
Features of Drone Detection Equipment
- Location:Locates drones and pilots
- Drone ID:Identifies drone S/N
- Black and white list:Classifies “friend”and “foe”
- Drone tracking:Tracks multiple drone flight trajectories simultaneously
- Networking:Multiple devices can network to cover a larger area
- Detection and neutralization linkage:Can interconnect with drone neutralization equipment
- Not just DJI:DJI, Autel as well ashomemade, FPV,WiFi drone models
- Full protection:Full-time, all-weather, no blind-zone
Specifications of Drone Detection Equipment
| Work mode |
Radio frequency
|
|
Detection target
|
Drone image-transmission and control signals
|
|
Drone frequency
|
900MHz,1.2GHz,2.4GHz,5.2GHz,5.8GHz
|
|
Range
|
1-10km
|
|
Swarm detection
|
~10 (concurrent)
|
|
Location error
|
~10m
|
|
Protection grade
|
IP65
|
|
Work temperature
|
-20~65℃
|
|
Dimension
|
L*W*H:513mm*462mm*187mm
|
| Product weight |
~30kg
|
