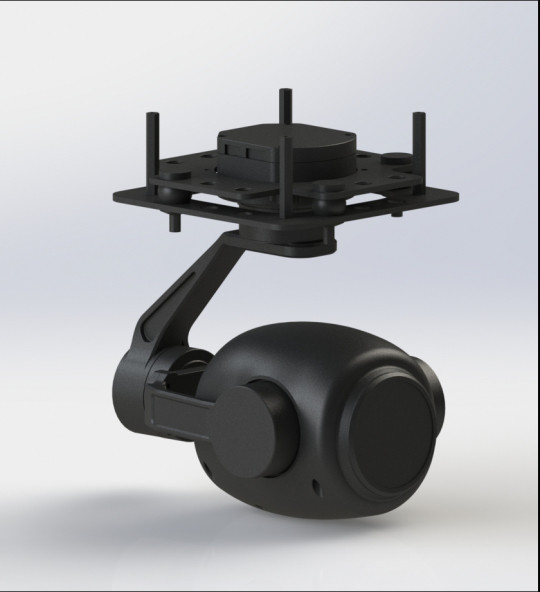

30 Optical Zoom Camera + 3-axis IP/HDMI Gimbal

Product Details

Place of Origin: CHINA

Brand Name: Forward

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: boxes

Delivery Time: 1-2 weeks

Payment Terms: L/C, T/T

Supply Ability: 100 pcs /years

Get Best Price
Highlight:
30 Optical Zoom Camera + 3-axis IP/HDMI Gimbal

30 Optical Zoom Camera + 3-axis IP/HDMI Gimbal

Descriptions of 30 Optical Zoom Camera + 3-axis IP/HDMI Gimbal:

This is a 30x optical zoom camera , 3-axis IP/HDMI gimbal. It output the RTSP stream video, video display and camera & gimbal controlled by the ground software station. It is stable, light in weight, and low power consumption. It has 1080p 30fps HD output 2MP resolution, local TF card storage, dual video stream output by the wireless transfer, IP support.

Specifications:

Voltage 3S or 6S
Power Dynamic 10W
Technical Parameters Roll Angle -85°~+85°
Pitch angle -90°~+90°
Yaw angle -280°~+280°
Jitter angle ±0.02°
Horizontal jitter angle ±0.03°
One-click restore One-click restore to the initial position
adjustable gimbal speed Use Low speed at big zom status for high precision display.Use fast speed control at small ziim status
Control way UART or LP NET control mode
Daylight Sensor Parameters CMOS Size 1/2.8 2 mega pixels CMOS SENSOR
Zoom 30HD optical zoom lens,f=4.5±10%~135±10%mm
Focus Focus in real time,less than 2 secs
video output ETHERNET RTSP 1080P 480P stream,Local TF1080P record
Field of vision(FOV) D:WIDE 67.8°±5% TELE2.77°±5%
H:WIDE 59.8°±5% TELE2.34°±5%
V:WIDE 40.5°±5% TELE1.48°±5%
Video mode 1080P 30fps /480P 30fps
Wireless video&data
(optioan)
Work frequence 806-826MHZ
Wireless power & distance 25 dBm 10KM
Command mode IP,SBUS,Uart
Gimbal Size 103mm ×154mm ×162mm
Working Condition -10℃ to +50℃/20% to 80% RH
Storage Environment -20℃ to +60℃/20% to 95% RH
Weights 670±10g
