FW-L35M PTZ Camera System Hunt Monocular Thermal Imager Infrared Scope Night Vision

Product Details

Place of Origin: China

Brand Name: Forward

Model Number: FW-L35M

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: boxes

Delivery Time: 1-2 weeks

Payment Terms: L/C, T/T

Supply Ability: 100 pcs/years

Get Best Price
Highlight:

Infrared Scope Handheld Night Vision

,

PTZ Camera System Thermal Imager Infrared

,

Outdoor Infrared Scope Thermal Imager

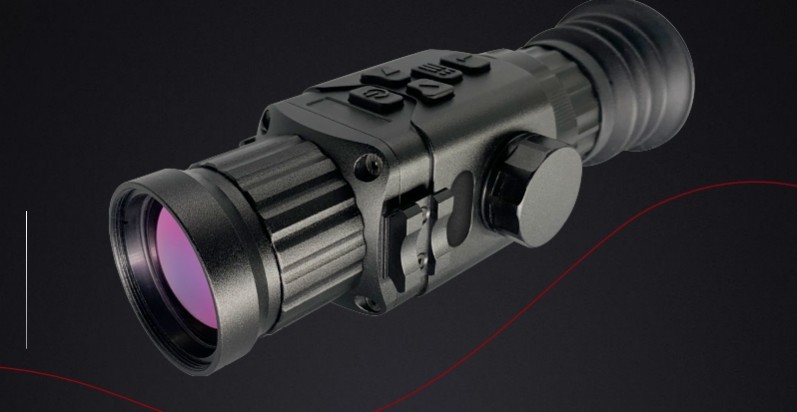

FW-L35M PTZ Camera System Hunt Monocular Thermal Imager Infrared Scope Night Vision

FW-L35M New Thermal Imaging Camera Hunt Monocular





Descriptions of New Thermal Imaging Camera Hunt Monocular:



This product is an economical infrared thermal imager for civil use.Vanadium oxide detector with 384 × 288 resolution and high sensitivity is used,Excellent imaging.The whole machine is compact in design,Small size, dustproof and waterproof, with high strength impact resistance,strong and durable, suitable for all kinds of environment.





Performances of New Thermal Imaging Camera Hunt Monocular:



>High Resolution 384×288,12μm high sensitivity vanadium oxide uncooled detector
>Support Shutter calibration technology
>Extra long standby time of single battery > 8 hours
>NETD<35mk@F1.0,25°C
>Real-time image output, support CVBS analog video output, external display
>The viewfinder is color 0.39 inch OLED
>Strong adaptability to the environment, high thermal shock resistance, vibration shock resistance
>Support rich image adjustment function, support menu function

>Available in 25 mm, 35 mm, and 50 mm
>8x digital zoom
>Various types of clamps are optional, suitable for all kinds of mainstream guide rail FW-L35M PTZ Camera System Hunt Monocular Thermal Imager Infrared Scope Night Vision 0
>One-piece aluminum-magnesium alloy CNC technology manufacturing of lightwei-ght solid body, excellent heat dissipation performance
>Can replace battery, support USB-C chargers power supply

>Application area:Outdoor adventure, Emergency Rescue, Police enforcement, Personal security



FW-L35M PTZ Camera System Hunt Monocular Thermal Imager Infrared Scope Night Vision 1

Specifications of New Thermal Imaging Camera Hunt Monocular:

Model
Detector
Detector Type Vanadium Oxide uncooled detector
Spectral 8~14μm
NETD < 35mk(@25°C,F#=1.0)
Resolution 384×288
Frame Rate 50fps
Pixel size 12μm
Lens
Focal length 25mm 35mm 50mm
FOV 10.6°×7.9° 7.5°×5.7° 5.3°×4.0°
Digital Zoom ×2 ×3 ×4
Focusing Manual Focus
Display
Screen 1024×768,0.39inch, OLED screen
Video output format CVBS

External Video

FW-L35M PTZ Camera System Hunt Monocular Thermal Imager Infrared Scope Night Vision 2Image parameter

Mode of correction

Support



Background correction

Nonuniformity correction Shutter calibration technique
Luminance Support
Contrast ratio Support
Image detail enhancemen Support
AGC Mode Automaticity
Noise reduction Support
Electron amplification ×1,×2,×4,×8
Pseudo-color mode White Hot, Black Hot,Red Hot,Fusion mode
Bad spot repair Support
Video output interface Type-C
Start-up drawing time <5S
Parameter Save Support
Cross cursor ≥5
Menu Support
Power Supply
Battery Type Rechargeable lithium-ion battery(18500×1)
Working Time The continuous working time of single battery is more than 8 hours, and the battery can be replaced
Environmental adaptability
Operating temperature -40℃~60℃,<90%RH
Dust/water proof IP67
Physical characteristics
Weight ≤450g
Dimensions 180mm×65mm×53mm
Packaging content
Standard fitting Mainframes×1,Portable bag×1,Orbit×1,Chargers×1,Batteries×2,Instruction manual×1,Warranty card×1,Cleaning Kit×1



R:FW-L35M PTZ Camera System Hunt Monocular Thermal Imager Infrared Scope Night Vision 3 195m

D:FW-L35M PTZ Camera System Hunt Monocular Thermal Imager Infrared Scope Night Vision 4 78m

FW-L35M PTZ Camera System Hunt Monocular Thermal Imager Infrared Scope Night Vision 5
