FW-E400 Thermal Refile Imaging Camera Compact Portable Thermal Imaging Night Vision

Product Details

Place of Origin: China

Brand Name: Forward

Model Number: FW-E400

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: boxes

Delivery Time: 1-2 weeks

Payment Terms: L/C, T/T

Supply Ability: 100 pcs/years

Get Best Price
Highlight:

Thermal Refile Imaging PTZ Camera System

,

Compact Portable Thermal Imaging Night Vision

FW-E400 Thermal Refile Imaging Camera Compact Portable Thermal Imaging Night Vision

FW-E400 Thermal refile Imaging Camera





Descriptions of Thermal refile Imaging Camera:



Thermal refile Imaging Camera equipped with ultra-low illumination visible light detector, infrared detector (resolution: 640 × 512), OLED display (resolution: 800 × 600) and large field of view eyepieces, with smoke, fog, rain, snow and other bad weather, quickly break the target concealment and lock the target combat capability, it has a dual-light fusion and target highlighting function, in order to meet the long-distance target detection based on the fusion of target details to improve target recognition, while combining video and photo functions can record and restore the scene. It has dual-light fusion and target highlighting functions, which can meet the long-distance target detection, fusion target details, enhance target recognition, and at the same time, combined with video recording and photo taking functions, it can record and restore the scene. It can be applied to patrol, law enforcement, search and rescue, anti-narcotics and anti-smuggling, prisoner pursuit and other scenes.





Performances of Thermal refile Imaging Camera:



1.Detecting and hot tracking the drones

2.High-resolution, uncooled infrared detector

3. High-resolution OLED color display (1024 * 768)

4. Low power consumption design, over 8 hours of continues operation on a charge

5.Simple and fast operation, easily interface and ergonomic design

6. Short start-up time, with the ability of rapid observation

7. Electronic amplification function to improve aiming accuracy

8.Anti-leakage goggles with good concealment

9. 5 styles & 4 colors to adapt to different equipment

10. Protection level: IP67, water resistent, high reliability, solid and durable

11. Optional laser range finder.

12. Video out

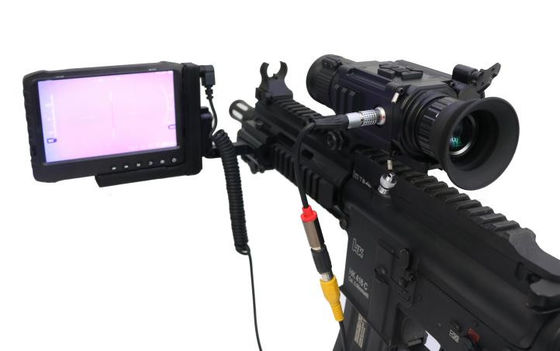

FW-E400 Thermal Refile Imaging Camera Compact Portable Thermal Imaging Night Vision 0

Specifications of Thermal refile Imaging Camera:





NAME FW-FW400
Detector type uncooled infrared detector
Working wave 8~14μm
Resolution(pixel) 384×288/640x512
Focus 42mm,F1.0(19~50mm customized)
Eyepiece HD OLED
Screen resolution 1024*768
Reticle crosshatch 5 types
Image mode

White hot,Black hot,Red hot,Pseudo-color hot,

Sky blue,Shape stroke

Zoom 1X/2X/4X
Battery 2 Rechargable 18650 / 3.7V lithium batteryies
Video out PAL (simulation video)
Working endurance ≥8 H
Working temperature -30℃~ +55℃ / -22~ +131F
Weight ≤550g / 19.40oz(Without battery)
Size

176mm× 80mm×72mm 6.93”X 3.15”X 2.83”

(including height of holder )

Impact resistance 6000 J(1000G customization)



FW-E400 Thermal Refile Imaging Camera Compact Portable Thermal Imaging Night Vision 1
