Home > products > PTZ Camera System > 4K dual output 110g mini Gimbal camera

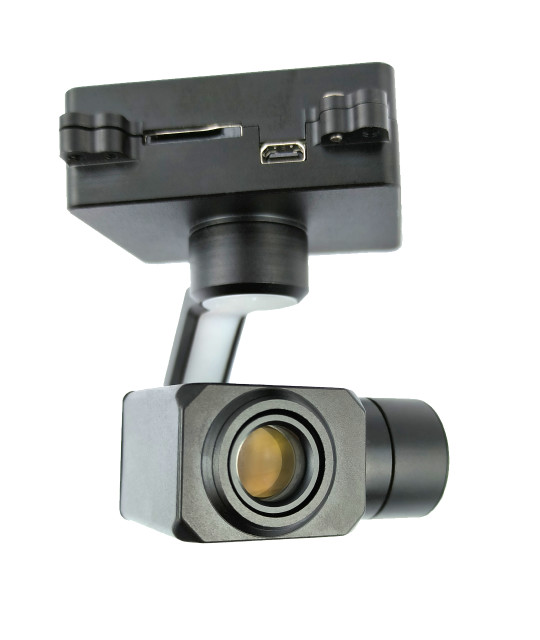

4K dual output 110g mini Gimbal camera

Product Details

Place of Origin: CHINA

Brand Name: Forward

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: boxes

Delivery Time: 1-2 weeks

Payment Terms: L/C, T/T

Supply Ability: 100 pcs/years

Get Best Price
Highlight:
4K dual output 110g mini Gimbal camera

4K dual output 110g mini Gimbal camera

Descriptions of 4K dual output 110g mini Gimbal camera:

 4K network dual output system integrating 9 times digital zoom and high precision professional three-axis enhance stability pod. It adopts network IP and HDMI dual output, and the pan-head adopts high precision encoder FOC control scheme, which has the characteristics of high stability, small size, light weight and low power consumption. The visible light camera uses high-definition SENSOR with effective pixels of 8 million; The system supports 4K and 1080P network RTSP stream output. Network, serial port and S.BUS, and can control the camera and tripod head, and support local TF storage.

Functional Features:

  • 4K visible light;
  • three-axis enhance stability pod;
  • Supports 9x digital zoom;
  • Network,S.BUS and UART contrdsd;
  • Support IP,HDMI dual output;
  • Light pod 110g;
  • Hight precision,high collaborative control;
  • TF and double record,network read/write TF card.

Specifications:



Voltage DC 12V-26.2V
Power dYNAMIC 4w
Working Status Roll Angle action range -45°~+45°
Pitch angle action range -45°~+100°
Heading angle action range -150°~+150°
Angle jitter in pitch
and roll direction
±0.02°
Horizontal angle jitter ±0.03°
One-click back to center
function
One key automatic fast return to the initial position
Pan-tilt control speed
is adjustable
When the pan-tilt rotates,the speed is adaptive based on the current speed mode and the multiple of the visible light camera
Control mode Support network IP control,SBUS control,serial port control (optional PWM control)
Visible light Camera Sensor 1/2.8 inch 8 megapixel HD CMOS SENSOR
Didital zoom Supports 9x digital zoom
Compressed storage mode H264,H265,local TF storage for video streams
HDMI video Micro-D HDMI 1080P 30fps
Network output mode 1080P 30fps
Angle of view(FOV) 25mm lens.FOV:10.5°*7.8°
Dimensions Φ:120mm H:68mm
Working environment -10℃ to +45℃/20% to 80% RH
Storage environment -20℃ to +60℃/20% to 95% RH
Main applications Drone aerial photography
Weights 110±10g
