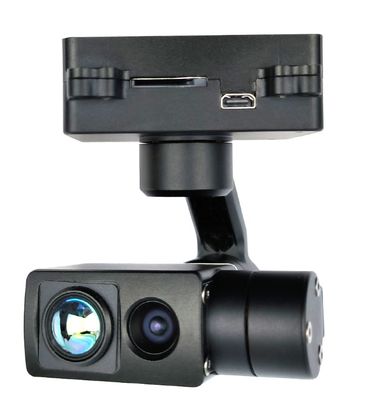

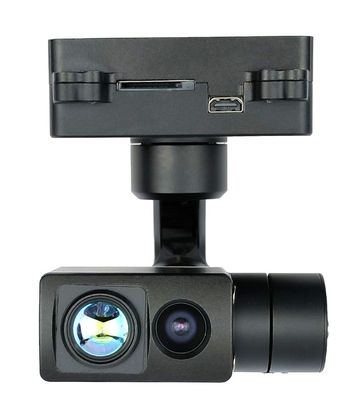

Fixed Focus Visible Light + 640x512 Thermal Imaging Dual Light 120g Small Gimbal IP /HDMI Output

Place of Origin China
Brand Name Forward
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details boxes
Delivery Time 1-2 weeks
Payment Terms L/C, T/T
Supply Ability 100 pcs/years

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

120g dual light thermal imaging

,

HDMI output dual light thermal imaging

,

IP dual light thermal imaging

Leave a Message
Product Description

Hybrid zoom dual output small gimal





Descriptions of Fixed focus visible light:



This product is a fixed focus dual light drone gimbal integrated fixed focus visible light camera, 8.7mm focal length 640x512 thermal camera, and high-precision professional 3-axis stabilized PTZ. It adopts network IP and HDMI dual output. The gimbal has the characteristics of high stability, small size, light weight and low power consumption; The visible light camera adopts CMOS SENSOR with 4 million effective pixels; The thermal imaging adopts 640×512 resolution vanadium oxide detector. The system supports network RTSP stream output, picture in picture switch, multiple pseudo color display, and global temperature measurement function. Both the serial port and the network can control the cameras and PTZ, support local TF two-way video recording and photography.



Features of Fixed focus visible light:



  • Fixed focus visible light
  • 640X512 Thermal Camera
  • Multiple pseudo color
  • HDMI and IP interface dual output
  • 9x digital zoom
  • Picture in picture switch
  • IP, SBUS, UART control
  • Lightweight gimble, 120g





Specifications of Fixed focus visible light:




Fixed focus visible light+640 thermal imaging 120g small gimbal
Voltage DC 12V-26.2V
Power Dynamic 4W
Technical

Parameters
Roll Angle -45°~ +45°
Pitch Angle -30°~ +90°
Yaw Angle -150°~ +150°
Jitter Angle ±0.02°
Horizontal Jitter Angle ±0.03°
One-Click Restore One-click restore to the initial position
Adjustable Gimbal Speed When the PTZ rotates,it conducts speed adaptation based on the

current speed mode and the multiple of visible light camera.
Control mode Support network IP UART control (SBUS and PWM are optional)
Daylight

Sensor

Parameters
SENSOR 4 Mega Pixels CMOS SENSOR
Digital Zoom 9x
Compressed storage mode H264,H265,video stream local TF storage
FOV FOV: 92°×59°
HDMI video Micro-D HDMI 1080P 30fps
IP output mode 1080P 30fps
Thermal

imager

Parameters
Resolution 640x512
Digital Zoom 9x
Pixel spacing 10μm
Wavelength range 814μm
Type Uncooled vanadium oxide detector
Wavelength range ≤50mk@F1.0@25
Field angle 8.7mm Lens,Angle:40.0°x32.2°
Measurement function ( optional) Support global temperature measurement,optional full pixel temperature

storage function
Gimbal Size φ:120mm H:68mm
Working Condition -10 to +55 /20%to 80%RH
Storage Environment -20 to +60 /20%to 95%RH
Main applications UAV aerial photography
Weight 120±10g
