FW-E30 Compact Portable Thermal Imaging PTZ Camera System

Product Details

Place of Origin: China

Brand Name: Forward

Model Number: FW-E30

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: boxes

Delivery Time: 1-2 weeks

Payment Terms: L/C, T/T

Supply Ability: 100 pcs/years

Get Best Price
Highlight:

Portable PTZ Thermal Imaging Camera

,

Thermal Imaging PTZ Camera System

,

Compact PTZ Camera System

FW-E30 Compact Portable Thermal Imaging PTZ Camera System

FW-E30 Compact Portable Thermal Imaging





Descriptions of FW-FW30 Compact Portable Thermal Imaging:



Compact Portable Thermal Imaging, equipped with ultra-low illumination visible light detector, infrared detector (resolution: 640 × 512), OLED display (resolution: 800 × 600) and large field of view eyepieces, with smoke, fog, rain, snow and other bad weather, quickly break the target concealment and lock the target combat capability, it has a dual-light fusion and target highlighting function, in order to meet the long-distance target detection based on the fusion of target details to improve target recognition, while combining video and photo functions can record and restore the scene. It has dual-light fusion and target highlighting functions, which can meet the long-distance target detection, fusion target details, enhance target recognition, and at the same time, combined with video recording and photo taking functions, it can record and restore the scene. It can be applied to patrol, law enforcement, search and rescue, anti-narcotics and anti-smuggling, prisoner pursuit and other scenes.





Performances of Compact Portable Thermal Imaging:



1,With 20 kinds of image modes;

2, with brightness, contrast manual or automatic adjustment function;

3, with thermal imaging mode in the display hotspot tracking function;

4, with a photo, video function;

5, with 1x, 2x, 3x, 4x times electronic zoom function;

6, with electronic compass, can be superimposed on the display of the electronic compass output bearing information;

7,Support wifi function, can take pictures, video, playback and operate the equipment through the intelligent terminal;

8, with built-in cross-hatching.

9, with GPS positioning function, can be superimposed on the display of GPS coordinates.

10, with the menu to adjust the time function of the machine;

11, visible image light resolution 1280 × 768;

12, visible video image field of view 11 ° × 8.6 °;

13, infrared thermal imaging video image resolution 640 × 512;

14, infrared thermal imaging video image field of view 12.8 ° × 9.7 °;

15, continuous working time ≥ 8h;

16, weight 1.471kg;

17, Size 190mm × 187mm × 85mm;

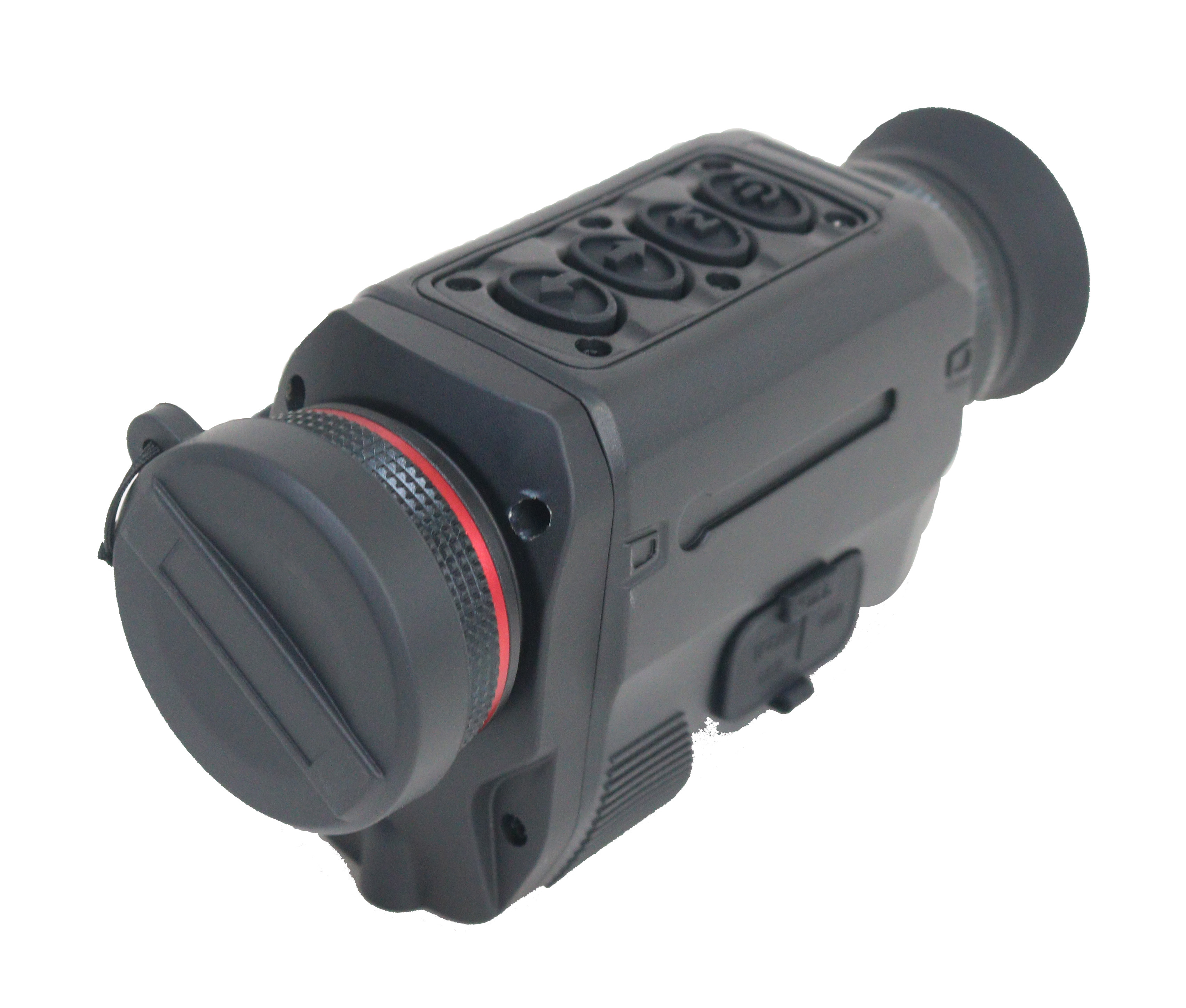

FW-E30 Compact Portable Thermal Imaging PTZ Camera System 0

Specifications of Compact Portable Thermal Imaging:





Main parameters Sensor Aluminium alloy + ABS
Objective lens 30mm
Magnification (x) 3- 9x
Detection range (m) 1800
Sensor Type Uncooled detector
Resolution (pixels) 384x288
Pixel Pitch (µm) 12
Frame rate (Hz) 50
Optical Parameters Objective lens 30mm
Magnification (x) 3 - 9X
Display Type AMOLED HD
Resolution (pixels) 1024x768
Detection Distance Detection Range (metres) 1800
Functions North Pointer Yes
Picture-in-Picture Yes
Multi-language Yes
Microphone Yes
Isometric Ranging Yes
Heat source tracking Yes
Image modes Black heat, white heat,
red heat,
white phosphorus,
amber, green heat,
iron heat, rainbow
Scene Modes Sunny mode / Cloudy mode
Video Recording Video Resolution (Pixels) 1280X720P
Internal Memory Card (GB) 16
Environmental
parameters
Protection class (IP code)
(IEC60529)
IPX7 (waterproof)
Operating temperature, °C ’-25 to +50
Power Supply Output Voltage (V) 3.4 - 4.2V
Battery Type 18650 rechargeable lithium battery
Capacity(mAh) 2600
Battery operating time (at temperature
22°C/hour) (Unit:hour)
4 hours or more
External power supply, V Micro USB (5V)
Weight and
Dimensions
Case Material Aluminium alloy + ABS
Dimensions (mm) 145*35*70mm
Weight(kg) 392g

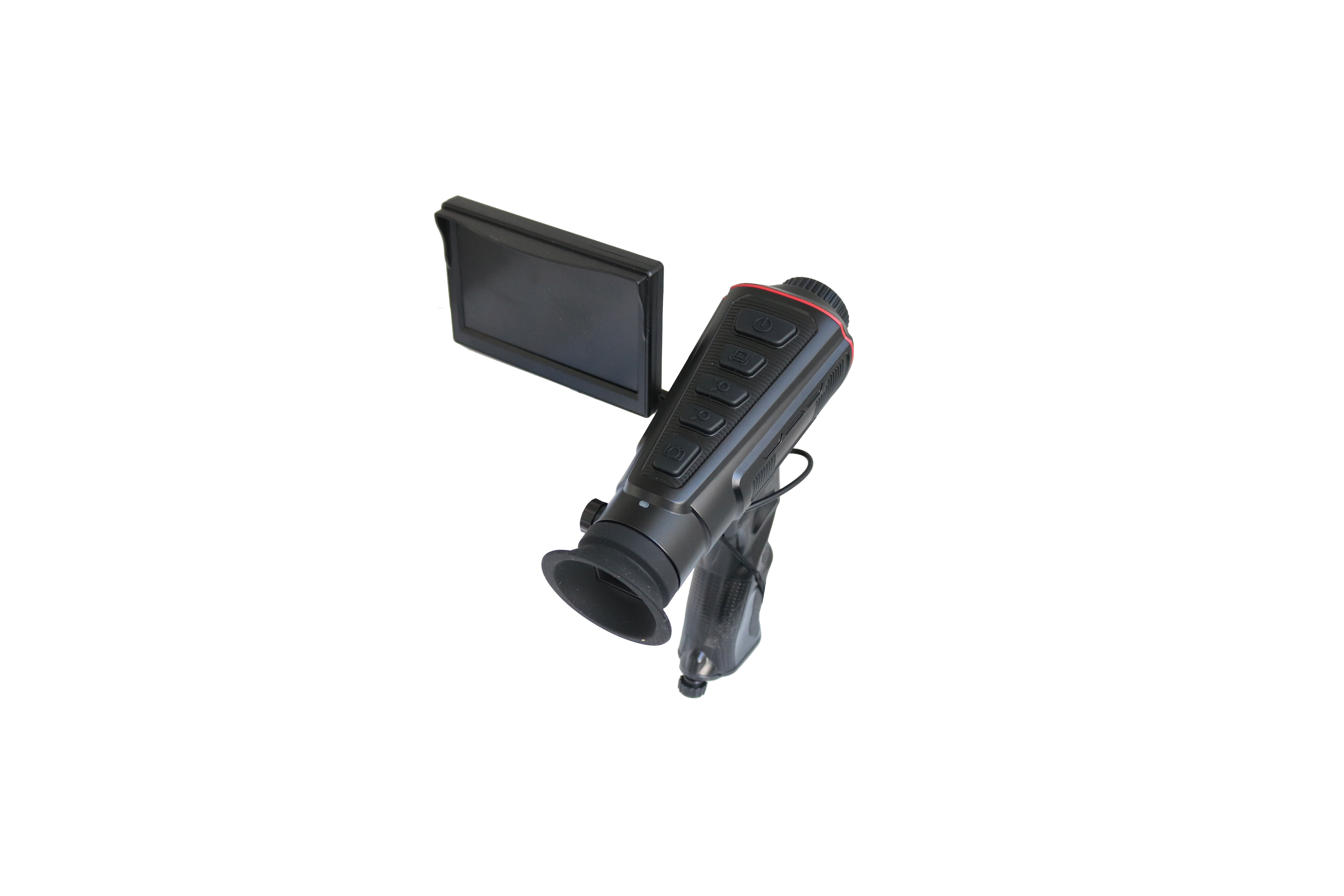

FW-E30 Compact Portable Thermal Imaging PTZ Camera System 1

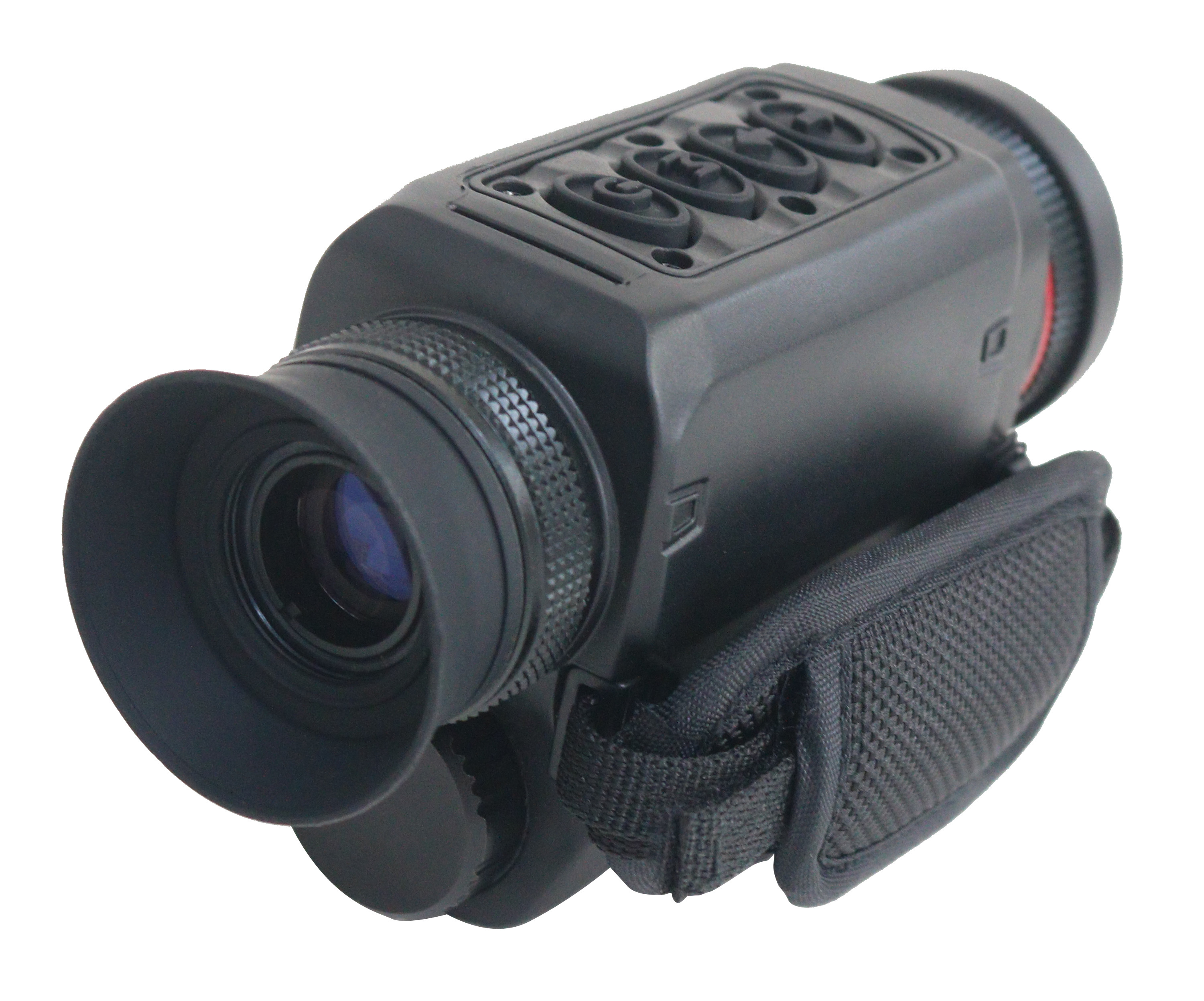

FW-E30 Compact Portable Thermal Imaging PTZ Camera System 2
