Product Details
Place of Origin: China
Brand Name: Forward
Model Number: FW-TIME-GPS
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Packaging Details: Standard Package
Payment Terms: L/C, T/T
Supply Ability: 100 pcs/year
Timing Accuracy: |
≤ 100 Ns |
Maintenance Capacity: |
≥ 60 Min |
Alarm Release: |
≤ 180 S |
Operating Frequency Bands: |
INPUT: BDS, GPS OUTPUT: BDS B1, GPS L1 |
Signal Transmission Power: |
-90 DBm To -125 DBm |
Power Consumption: |
≤ 50 W |
Power Supply: |
AC 110V/220V |
Operating Temperature: |
-40℃ To 55℃ |
Operating Humidity: |
5% RH To 95% RH |
Product Dimensions: |
483 Mm × 430 Mm × 45 Mm (L × W × H) |
Timing Accuracy: |
≤ 100 Ns |
Maintenance Capacity: |
≥ 60 Min |
Alarm Release: |
≤ 180 S |
Operating Frequency Bands: |
INPUT: BDS, GPS OUTPUT: BDS B1, GPS L1 |
Signal Transmission Power: |
-90 DBm To -125 DBm |
Power Consumption: |
≤ 50 W |
Power Supply: |
AC 110V/220V |
Operating Temperature: |
-40℃ To 55℃ |
Operating Humidity: |
5% RH To 95% RH |
Product Dimensions: |
483 Mm × 430 Mm × 45 Mm (L × W × H) |
Anti Drone System Space-time safety isolation devic transformer

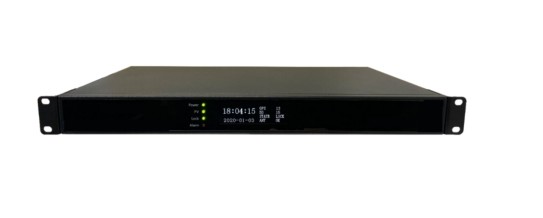

Descriptions of Anti Drone System Space-time safety isolation device FW-TIME-GPS transformer
Satellite time and space security isolation device is a satellite time and space security protection product developed to cope with the characteristics of satellite signals susceptible to interference, attack and spoofing, which affect the reception of normal satellite signals and lead to the abnormal operation of satellite time synchronisation devices. The products judge the deception and interference signals in real time, and ensure that the position accuracy and time accuracy clock of the output navigation satellite signals are kept in a stable state of operation under the denial maintenance mode.
Features of Anti Drone System Space-time safety isolation device transformer
High degree of safety and security
Expandable input frequency band
Easy installation
Specifications of Anti Drone System Space-time safety isolation device transformer
|
Supported Frequency Bands
|
GPS/BD/(B3 optional)
|
|
signal power
|
<-90dBm
|
|
Anti-spoofing performance
|
Protection against forwarding, generative and intrusive spoofing
|
|
Display mode
|
OLED liquid crystal display: display device working status, lock status
|
|
Signal intrusion time
|
≤10s
|
|
operating temperature
|
-40°C ~ +70°C
|
|
Product weight
|
4.3KG
|
|
Product Size
|
483mm x 400mm x 44mm (483mm x 430mm x 44mm with handle)
|
|
Power supply method
|
DC220V
|
