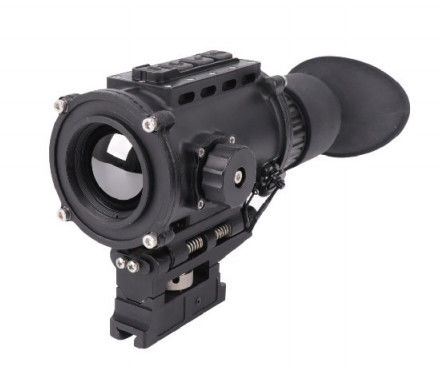

35mm Focal Distance FW-S560 Thermal Imaging Night Vision Device Featuring 1024*768 OLED Display
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-S560 |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Detection Type | Vanadium Oxide Uncooled Focal Plane | NETD | ≤40mk@F1.0 |
|---|---|---|---|
| Focal Distance | 35mm | Display | 1024*768 OLED |
| Highlight | 1024*768 Thermal Imaging Night Vision Device,35mm Thermal Imaging Night Vision Device |
||
Product Description
Features of FW-S560 Thermal imaging night vision device
- 384*288 Vanadium Oxide Uncooled Focal Plane
- High resolution 1024*768 OLED
- Small size, light weight, can be handheld for observation and operation
-
IP67 waterproof and dustproof
Specifications of FW-S560 Thermal imaging night vision device
| Detector Type | Vanadium Oxide Uncooled Focal Plane |
| Resolution | 384*288 |
| Pixel spacing | 17μm |
| NETD | ≤40mk@25℃ |
| Focal distance | 35mm |
| FOV | 10,7°*8.0° |
| Image mode | White hot, black hot |
| Focus | Manual focus |
| Display | 0.6inch,color OLED,resolution1024*768 |
| Electronic zoom | X2,X4 |
| MRTD | ≤0.6℃ |
| Protection level | IP67 |
| Battery operating time | ≧3h |
| Woking Temperature | -40℃~+60℃ |
| Storage temperature | -40℃~+70℃ |
| Weight | ≤0.6kg |
| Size | 210mm*100mm*115mm |
| Detection distance | Pepole 1.8m*0.5m 1000m |
| Car 2.3m*2.3m 1500m | |
| Identification distance | Pepole 1.8m*0.5m 500m |
| Car 2.3m*2.3m 790m |
