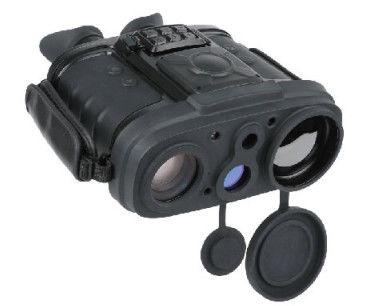

FW-S735 Multi-spectral Thermal Imaging Detector with 640×512 Vanadium Oxide Uncooled Focal Plane 2MP Low-light Camera and IP66 Waterproof Protection
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-S735 |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | FW-S735 Thermal Imaging Detector,Multi functional Thermal Imaging Detector,Multi spectral Thermal Imaging Detector |
||
|---|---|---|---|
Product Description
FW-S735 Multi Spectral Multi Functional Thermal Imaging Detector
Key Features
- 640*512 Vanadium Oxide Uncooled Focal Plane for high-resolution thermal imaging
- Built-in infrared 25/80mm dual field of view electric lens for flexible observation
- Multi-spectral all-weather capability for day/night observation and law enforcement recording
- 2-megapixel low-light camera with dual-light fusion mode
- Rugged construction with IP66 waterproof/dustproof rating and 1 meter drop resistance
Technical Specifications
| Infrared Thermal Imaging |
Resolution: 640*512, 12μm Wavelength: 8-14μm Dual FOV: 17.5°*14° / 5.5°*4.4° |
|---|---|
| Visible Light Imaging |
Resolution: 5 megapixels Optical fog penetration: Supported FOV: 59.4°*35.7°-2.3°*1.3° |
| Low-light Imaging |
Resolution: 2 megapixels FOV: 8.1°*4.5° |
| Laser Distance Measurement |
Wavelength: 1535nm Measuring range: ≥6km Distance measurement accuracy: 2m |
| Laser Pointer |
Visible laser indication band: 625nm Invisible laser indication band: 830nm |
| Positioning Module |
Positioning mode: BeiDou and GPS Horizontal positioning accuracy: 5m Elevation positioning accuracy: 10m |
| 3D Electronic Compass | Accuracy: 0.5° |
| Display |
Resolution: 1440*1080, OLED Size: 0.49 inch |
| WIFI Module | Supports both hotspot (AP) and router (STA) MODE |
| Photo and Video |
Photo: ≥80,000 pcs (JPG) Video: ≥24h (MP4) |
| Physical Specifications |
Weight: ≥2.7kg Size: 238*230*117mm Protection level: IP67 Working time: ≥13h |
| Detection Distance |
Person (1.7m*0.5m): 3700m Vehicle (2.3m*2.3m): 5100m |
| Identification Distance |
Person (1.7m*0.5m): 1850m Vehicle (2.3m*2.3m): 2600m |
