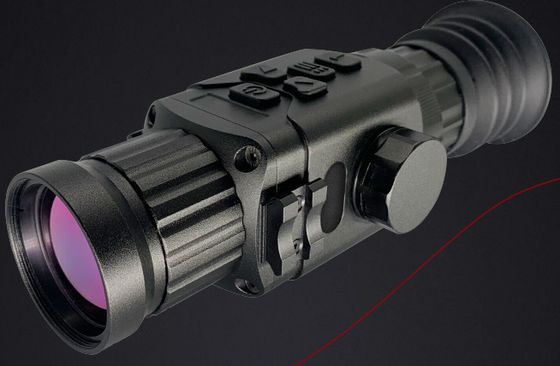

FW-A01 Multifunction Infrared Thermal Imager 180mm×65mm×53mm IP67 Dust / Water Proof No Burden More Precise
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-A01 |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Dust/water Proof | IP67 | Operating Temperature | -40℃~+50℃，＜90%RH |
|---|---|---|---|
| Weight | ≤450g | Dimensions | 180mm×65mm×53mm |
| Electron Amplification | ×1，×2，×4，×8 | Frame Rate | 50fps |
| Highlight | IP67 Dust water Proof Thermal Imager,Water Proof Multifunction Infrared Thermal Imager,180mm×65mm×53mm Thermal Imager |
||
Product Description
Descriptions of FW-A01 Multifunction infrared thermal imager No burden More precise
This product is an economical infrared thermal imager for civil use.Vanadium oxide detector with 384 × 288 resolution and high sensitivity is used,Excellent imaging.The whole machine is compact in design,Small size, dustproof and waterproof, with high strength impact resistance,Strong and durable, suitable for all kinds of environment.
Features of FW-A01 Multifunction infrared thermal imager No burden More precise
- High Resolution 384 × 288,12μm high sensitivity vanadium oxide uncooled detector
-
Support Shutter calibration technology
- Extra long standby time of single battery > 8 hours
-
NETD＜35mk@F1.0,25°C
-
Real-time image output, support CVBS analog video output, external display
-
The viewfinder is color 0.39 inch OLED
-
Strong adaptability to the environment, high thermal shock resistance, vibration shock resistance
- Support rich image adjustment function, support menu function
-
Available in 25 mm, 35 mm, and 50 mm
-
Can replace battery, support USB-C chargers power supply
-
8x digital zoom
-
Various types of clamps are optional, suitable for all kinds of mainstream guide rail
-
One-piece aluminum-magnesium alloy CNC technology manufacturing of lightweight solid body, excellent heat dissipation performance
Specifications of FW-A01 Multifunction infrared thermal imager No burden More precise
| Model | |||
| Detector | |||
| Detector Type | Vanadium Oxide uncooled detector | ||
| Spectral | 8~14μm | ||
| NETD | <35mk(@25℃,F#=1.0) | ||
| Resolution | 384×288 | ||
| Frame Rate | 50fps | ||
| Pixel size | 12μm | ||
| Lens | |||
| Focal length | 25mm | 35mm | 50mm |
| FOV | 10.6°×7.9° | 7.5°×5.7° | 5.3°×4.0° |
| Digital Zoom | ×2 | ×3 | ×4 |
| Focusing | Manual Focus | ||
| Display | |||
| Screen | 1024×768,0.39inch,OLED screen | ||
| Video output format | CVBS | ||
| External Video | Support | ||
| Image parameter | |||
| Mode of correction | Background correction | ||
| Nonuniformity correction | Shutter calibration technique | ||
| Luminance | Support | ||
| Contrast ratio | Support | ||
| Image detail enhancemen | Support | ||
| AGC Mode | Automaticity | ||
| Noise reduction | Support | ||
| Electron amplification | ×1,×2,×4,×8 | ||
| Pseudo-color mode | White Hot,Black Hot,Red Hot,Fusion mode | ||
| Bad spot repair | Support | ||
| Video output interface | Type-C | ||
| Start-up drawing time | <5S | ||
| Parameter Save | Support | ||
| Cross cursor | ≥5 | ||
| Menu | Support | ||
| Power Supply | |||
| Battery Type | Rechargeable lithium-ion battery(18500×1) | ||
| Working Time | The continuous working time of single battery is more than 8 hours,and the battery can be replaced | ||
| Environmental adaptability | |||
| Operating temperature | -40℃~60℃,<90%RH | ||
| Dust/water proof | IP67 | ||
| Physical characteristics | |||
| Weight | ≤450g | ||
| Dimensions | 180mm×65mm×53mm | ||
| Packaging content | |||
| Standard fitting | Mainframes×1,Portable bag×1,Orbit×1,Chargers×1,Batteries×2,Instruction manual×1,Warranty card×1,Cleaning Kit×1 | ||
| Recognition Range/Detection Range | |||
| People | R: 1300m D: 520m |
R: 1600m |
R: 1900m |
| Pig/Deer | R: 1144m D: 458m |
R: 1472m |
R: 1672m |
| Rabbit | R: 345m D: 138m |
R: 405m D: 162m |
R: 487m D: 195m |
| Chickens | R: 247m D: 99m |
R: 302m D: 121m |
R: 356m D: 143m |
| Sparrows |
R: 123m |
R: 167m |
R: 195m |
