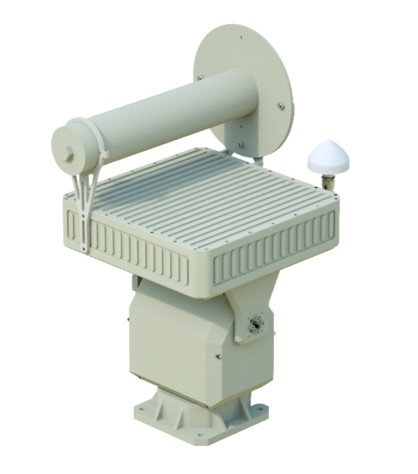

Anti Drone System FW-XD-TLN1000T (Turntable Version) | Countermeasure Series

Anti Drone System FW-XD-TLN1000T (Turntable Version) | Countermeasure Series

  • Anti Drone System FW-XD-TLN1000T (Turntable Version) | Countermeasure Series
Anti Drone System FW-XD-TLN1000T (Turntable Version) | Countermeasure Series
Product Details:
Place of Origin: China
Brand Name: Forward
Model Number: FW-XD-TLN1000T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard Package
Payment Terms: L/C, T/T
Supply Ability: 100 pcs/year
Contact Now
Detailed Product Description
Early Warning Detection Distance: ≥5Km (false Alarm Rate :10-6, Detection Probability :95%) Minimum Detection Distance: 180m
Data Update Rate: 6s

Anti Drone System FW-XD-TLN1000T (Turntable Version) | Countermeasure Series

Descriptions of Anti Drone System FW-XD-TLN1000T Countermeasure Series

FW-XD-TLN1000T (turntable version) deceptively interferes with satellite navigation coordinate information received by UAVs using satellite navigation and positioning by regenerating satellite navigation spoofing signals in not less than two frequency bands. It can realise the functions of no-fly zone projection, directional repulsion and area denial.



Features of Anti Drone System FW-XD-TLN1000T Countermeasure Series

It has the characteristics of high Angle measurement accuracy (azimuth, pitch), low false alarm rate, stable track tracking and maneuvering flight that can adapt to targets in complex environments such as cities.

Specifications of Anti Drone System FW-XD-TLN1000T Countermeasure Series

Supported Frequency Bands GPS L1/GLONASS L1/Beidou B1
signal power <5W (supports customisation)
action distance 5km
Continuous autonomous working capacity Autonomous and unattended operation for 24 hours
Strategy Support Directed displacement, area denial
Signalling time <3s
Signal intrusion time <10s
Power Consumption ≤75w
operating temperature -40°C ~ +70°C
Product weight <30kg
rotation speed Horizontal 0.01°~30°/S; Tilt 0.01°~12°/S (Continuously Variable Speed)
angle of rotation Horizontal 0°~360° continuous rotation; Pitch -10°~+90°;
Positioning angle analysis rate ±0.1°
Repeatability ±0.1°
communication protocols Pelco-D protocol



Anti Drone System FW-XD-TLN1000T (Turntable Version) | Countermeasure Series 0
