Low-altitude Surveillance Phased Array Radar
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Minimum Order Quantity | 1 set |
| Packaging Details | Standard Package |
| Payment Terms | L/C, T/T |
| Supply Ability | 100 pcs/year |
Product Details
| Early Warning Detection Distance | ≥5Km (false Alarm Rate :10-6, Detection Probability :95%) | Minimum Detection Distance | 180m |
|---|---|---|---|
| Data Update Rate | 6s | ||
| Highlight | Anti Drone System 180m Detection Distance,Radar Anti Drone System,Anti Drone System |
||
Product Description

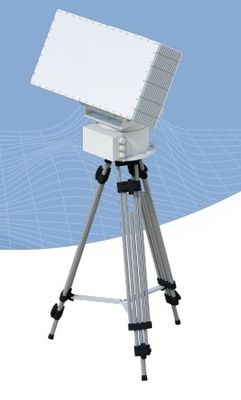

Low-altitude Surveillance Phased Array Radar
Descriptions of Low-altitude Surveillance Phased Array Radar
The product employs deep learning technology, exhibiting a reduced reliance on signal-to-noise ratio. It effectively addresses the challenge of detecting small targets in complex environments. It endows the radar with adaptive capabilities to various terrain environments, eliminating the need for parameter adjustments after relocation; it can be powered on directly for searching, ensuring user-friendly operation. Additionally, it breaks through traditional radar methods in particular MTI+MTD, CFAR, and conventional clutter map detection. It excels in high angular
accuracy (azimuth and elevation), extremely low false alarm rates, stable trajectory tracking, and adaptability to the maneuvering flight of targets in complex environ ments like urban areas. The system can autonomously recognize rainy conditions, effectively suppress meteorological clutter, and operate around the clock.
Features of Low-altitude Surveillance Phased Array Radar
- Precision Detection
- Stable Tracking
- High Adaptability
- Deep Learning
Industry Applications of Low-altitude Surveillance Phased Array Radar
- Security & Counter-terrorism in the Oil & Petrochemical Industry
- Security & Counter-terrorism in the Power Industry
- Government & Security Agency
- Civil Aviation Airport & Logistics Base
- Large-Scale Event & Sport Competition
- Urban No-Fly Zone Airspace Security
- Business & Personal Privacy Protection
- More Industry Solutions
Specifications of Low-altitude Surveillance Phased Array Radar
|
Resolution
|
Azimuth: ≤2.8°; Elevation: ≤7.5°; Range: ≤17 m
|
|
Accuracy
|
Azimuth: ≤ 0.5° (3σ); Elevation: ≤ 0.5° (3σ); Range: ≤ 8 m (3σ)
|
|
Power Consumption
|
Radar Frontend ≤ 220 W
Real-time data processing platform ≤ 200
|
|
Operating Temperature
|
-40℃ to 55℃
|
|
Weight
|
Radar Frontend ≤ 34 kg
Real-time Data Processing Platform ≤ 15 kg
|
|
Product Dimensions
|
Array ≤ 600 mm × 550 mm (including turntable)
|
|
Ingress Protection Rating
|
IP65
|
