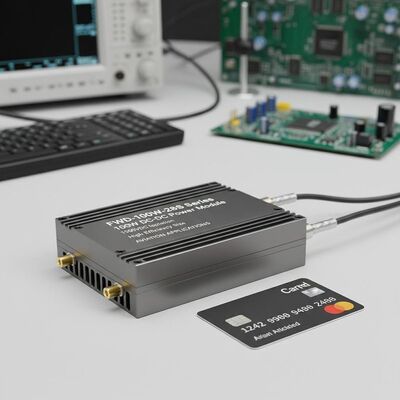

FWD-100W-28S Series 100W DC-DC Power Module with 1500VDC Isolation and Ultra-compact Size for Aviation Applications
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FWD-100W-28S Series |
| Minimum Order Quantity | 1 |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 10000/year |
Product Details
| Input（VDC） | 16～40V | Size | 35.4 × 25.1 × 12.7mm |
|---|---|---|---|
| Temperature Cycle | -55～ + 125℃ , 10 Times | Weight | 31g |
| Cooling Method | Convection,forced Air Cooling,conduction | Protection | Moisture Proof,salt Spray Proof,mold Proof |
| Highlight | FWD-100W-28S Aviation DC-DC,Aviation DC-DC Power Module,100W Aviation DC-DC Module |
||
Product Description
FWD-100W-28S Series 1/16 BRICK POWER SERIES 60W DC-DC POWER MODULE
Key Features
- High Efficiency: 90.3%
- Max Output Power: Up to 100W
- Input/Output Isolation: 1500VDC
- Ultra-compact size: 35.4 * 25.1 * 12.7 mm
- High reliability: No internal Aluminum and Tantalum electrolytic capacitors
- Over current, over voltage and short-circuit protection
- Applications: Military research, Industrial control, radar, fire control, missile-borne, communication systems
Model Specifications
| Model | Input (VDC) | Output (VDC) | Output Current | Ripple Vp-p | Efficiency | Size |
|---|---|---|---|---|---|---|
| WBDC100W-28S3R3 | 16-40V | 3.3V | 20A | 80mV | 88% | 35.4*25.1*12.7 |
| WBDC100W-28S05 | 16-40V | 5V | 20A | 80mV | 88% | 35.4*25.1*12.7 |
| WBDC100W-28S08 | 16-40V | 8V | 125A | 100mV | 89% | 35.4*25.1*12.7 |
| WBDC100W-28S012 | 16-40V | 12V | 8.33A | 100mV | 90.3% | 35.4*25.1*12.7 |
| WBDC100W-28S15 | 16-40V | 15V | 6.66A | 100mV | 90% | 35.4*25.1*12.7 |
| WBDC100W-28S24 | 16-40V | 24V | 4.16A | 150mV | 90% | 35.4*25.1*12.7 |
| WBDC100W-28S28 | 16-40V | 28V | 3.57A | 150mV | 89% | 35.4*25.1*12.7 |
| WBDC100W-28S32 | 16-40V | 32V | 3.12A | 100mV | 89% | 35.4*25.1*12.7 |
| WBDC100W-28S36 | 16-40V | 36V | 2.77A | 200mV | 89% | 35.4*25.1*12.7 |
Important Notes
All data is tested at +25℃ unless otherwise specified, under rated input/output, full load and pure resistive load.
Contact us for custom voltage output requirements.
Models with "N" postfix indicate negative logic, flange-R configuration.
Suffix plus-M (-55 degree activation) naming rules: N-R-M
Input Parameters
| Input Parameter | Remark | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Input voltage range | 28Vin | 16 | 28 | 40 | VDC |
| Input surge voltage | Transient (1s) | 50 | VDC | ||
| Turn on voltage | 14 | 15 | 16 | VDC | |
| Turn off voltage | 13 | 14 | 15 | VDC | |
| No load input current | Output no load 48Vin | 110 | mA | ||
| Input/output filtering | π Type | Multi-level | |||
| Enable logic | Positive logic: Power on (Enable pin open), Power off (Enable pin shorted) Negative logic: Power off (Enable pin open), Power on (Enable pin shorted) |
||||
General Specifications
| General Specification | Remark | Min | Typical | Max | Unit |
|---|---|---|---|---|---|
| Input/output isolation voltage | 1500 | VDC | |||
| Input/housing isolation voltage | 1500 | VDC | |||
| Output/housing isolation voltage | 500 | VDC | |||
| Insulation resistance | DC500V | 100 | MΩ | ||
| Switching frequency | 200 | 320 | 4000 | kHz | |
| Working temperature | -40 | 100 | ℃ | ||
| Storage temperature | -55 | 125 | ℃ | ||
| Protection | Moisture proof, salt spray proof, mold proof | ||||
| Size | 35.4 * 25.1 * 12.7 | mm | |||
| Cooling method | Convection, forced air cooling, conduction | ||||
| Weight | 31 | g | |||
Selection Testing Standards
| Test Project | Method | Test Condition | Industrial Grade | Military Grade |
|---|---|---|---|---|
| Internal visual inspection | GJB548B, 2017.1 | 100% | 100% | |
| High temperature storage | GJB150.3A | +125℃, 48h | 100% | |
| Low temperature storage | GJB150.3A | -55℃, 48h | 100% | |
| Temperature cycle | GJB548B, 1010.1 | -55～+125℃, 10 times | 100% | |
| Intermediate voltage testing | - | Tc = +25℃ | 100% | |
| Burn-in | Tc = +85℃, 48h | Random check | 100% | |
| Final electrical test | Product specification | -40℃, +25℃, +85℃ (Tc) | 100% | 100% |
| External visual inspection | GJB548B, 2009.1 | 100% | 100% |
Physical Dimensions
Size: 33.2mm (length) * 22.8mm (width) * 9.1mm (height)
Pin Configuration
| Pin | Symbol | Function |
|---|---|---|
| 1 | Vi- | Input negative |
| 2 | EN | Control end |
| 3 | Vi+ | Input positive |
| 4 | Vo+ | Output positive |
| 5 | S+ | Sensing end positive |
| 6 | Trim | Voltage adjustment end |
| 7 | S- | Sensing end negative |
| 8 | Vo- | Output negative |
