FW-S253 Thermal Imaging Monocular with IP66 Waterproof and Dustproof 1 Meter Drop-Resistant and 384*288 Resolution Infrared Thermal Imaging Telescope

Place of Origin China
Brand Name Forward
Model Number FW-S253
Minimum Order Quantity 1 set
Delivery Time 5-8 work days
Payment Terms L/C,T/T
Supply Ability 100 pcs/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Detection Type Vanadium Oxide Uncooled Focal Plane NETD ≤40mk@F1.0
Focal Distance 25mm Display 1440*1080 OLED
Highlight

Monocular infrared thermal imaging telescope

,

infrared thermal imaging telescope

Leave a Message
Product Description

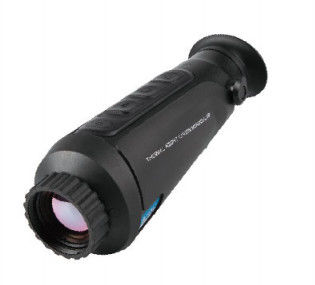

FW-S253 Monocular Infrared Thermal Imaging Telescope
Key Features
  • 384*288 Vanadium Oxide Uncooled Focal Plane for precise thermal detection
  • Integrated GPS, electronic compass, and laser ranging functionality
  • Built-in visible light camera for evidence collection and recording
  • High-resolution 1440*1080 display for clear image viewing
  • Rugged IP66 waterproof and dustproof construction with 1-meter drop resistance
Technical Specifications
Detector Type Vanadium Oxide Uncooled Focal Plane
Resolution 384*288
Pixel Spacing 12μm
NETD ≤40mk@30℃
Frame Rate 50Hz
Focal Distance 25mm
FOV 14°*10.5°
Image Modes White hot, black hot, red hot, iron red
Basic Magnification 1.64x
Image Transmission WIFI real-time transmission with mobile app support
Focus Manual focus
Display 0.39" color OLED, 1440*1080 resolution
Accuracy ±1m
Electronic Zoom X1.0-4.0
Battery Lithium battery (>4h operation)
Focus Range 1m~∞
Wavelength 8-14μm
Storage 32G
Protection Level IP66
Drop Resistance 1m
Operating Temperature -20℃ to +50℃
Storage Temperature -40℃ to +60℃
Weight 0.45kg
Dimensions 200mm*71mm*71mm
Power DC5V/2A (Micro USB)
Detection Performance
Target Size Detection Distance Identification Distance
Person (1.8m*0.5m) Standard human silhouette 700m 350m
Vehicle (2.3m*2.3m) Standard car profile 1100m 560m
