FW-CK25 Pocket Infrared Thermal Imager with 256*192 Pixels 3.5-inch LCD Touch Screen and IP67 Waterproof Dustproof Protection
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-CK25 |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Detection Type | Vanadium Oxide Microbolometer | Display | 1440×1080 OLED |
|---|---|---|---|
| Working Time | >4h | NETD | ≤0.04℃@30℃ |
| Lens | 60mm /F1.0 | Storage | 16G |
| Highlight | Pocket Infrared Thermal Imager,Thermal Imaging Monocular,Pocket Thermal Imaging Monocular |
||
Product Description

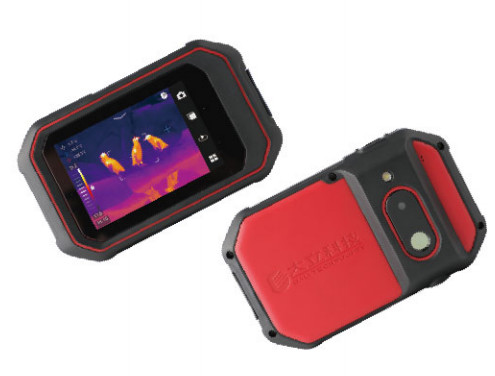

FW-CK25 Pocket Infrared Thermal Imager Thermal Imaging Monocular
Key Features
- 256*192 pixel Vanadium Oxide Microbolometer for sensitive, high-definition thermal imaging
- Multiple viewing modes: Infrared, visible light, picture-in-picture, and fusion mode with selectable pseudo-color palettes
- 3.5-inch LCD touch screen for intuitive operation
- Built-in WIFI for image transmission and video/photo capture functionality
- Rugged IP67 waterproof and dustproof design with 2-meter drop resistance
Technical Specifications
| Detector Type | Vanadium Oxide Microbolometer |
|---|---|
| Resolution | 256*192 |
| Lens | 6.0mm/F1.0 (Optional 2x lens available) |
| Spatial Resolution | 2.0mrad |
| NETD | ≤0.04℃@30℃ |
| Frame Rate | 50Hz |
| Wavelength | 7.5-14μm |
| Display | 3.5" TFT COLOR LCD touchscreen |
| Image Display Modes | Infrared/visible light switching, picture-in-picture, and image fusion |
| Color Palettes | 8 selectable options |
| Image Processing | Automatic/manual contrast/brightness adjustment with enhancement mode |
| Temperature Range | -20℃ to +350℃ |
| Accuracy | ±2℃ |
| Temperature Correction | Automatic/Manual |
| Measurement Modes | Real-time movable points/areas (max/min temp capture), line measurement, temperature alarm |
| Battery | Built-in rechargeable lithium battery (≥4h operation) |
| Storage | 16GB internal |
| Connectivity | USB Type C, WIFI (Android app compatible) |
| Durability | IP66 protection, 30G shock resistance, 2G vibration resistance |
| Dimensions | 135mm * 90mm * 26mm (200g weight) |
| Software | Professional report analysis software with one-click report generation |
