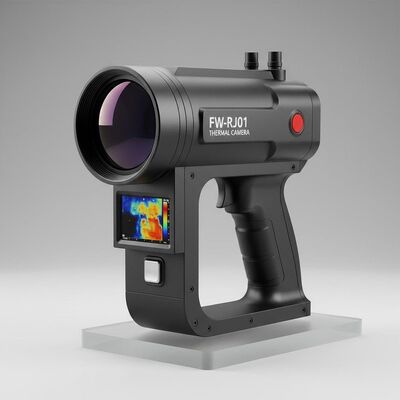

FW-RJ01 Uncooled Infrared Thermal Camera with 640×512 Resolution 12μm Pixel Pitch and ≤40mk NETD for Industrial Detection
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-RJ01 |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Product Details
| Detector | Uncooled VOx Microbolometer | Resolution | 640×512 |
|---|---|---|---|
| Pixel Pitch | 12μm | Spectral Range | 8～12μm |
| NETD | ≤40mk | ||
| Highlight | Uncooled Thermal Camera,Uncooled Infrared Thermal Camera,FW-RJ01 Thermal Camera |
||
Product Description
FW-RJ01 Uncooled Infrared Thermal Camera
Product Overview
The FW-RJ01 is an advanced photoelectric device utilizing infrared thermal imaging technology. It detects infrared radiation emitted from object surfaces and converts it into visual temperature distribution images without requiring low-temperature refrigeration. Featuring lightweight construction, rapid response, and exceptional cost-effectiveness, this thermal camera is ideal for industrial inspection, security monitoring, firefighting operations, medical diagnostics, and scientific research applications.
Key Features
- Ultra-low power consumption under 0.8W
- Lightweight design weighing less than 14g
- Crisp 640x512 resolution imaging with 9.1mm or 13.5mm lens options
- Military-grade operating temperature range: -40℃ to +70℃
- Standard FPC interface with optional USB-C or Ethernet connectivity
- Compact design with integrated shutter mechanism
- Radiometric measurement for central, high/low points, and optional full-screen analysis
- Expandable AI image processing capabilities
Technical Specifications
| Detector Type | Uncooled VOx Microbolometer |
| Resolution | 640×512 |
| Pixel Pitch | 12μm |
| Spectral Range | 8～12μm |
| NETD | ≤40mk |
| Lens Options | 9.1mm / 13.5mm |
| Startup Time | ≤5 seconds |
| Analog Video Output | Standard PAL |
| Digital Video Output | 16-bit DVP |
| Frame Rate | 25/50Hz |
| Interface | UART (USB-C optional) |
| Power Consumption | ≤0.8W @25℃ standard operation |
| Working Voltage | DC 4.5-5.5V |
| Calibration | Manual calibration, background calibration |
| Polarization | White hot / Black hot |
| Digital Zoom | ×2, ×4 |
| Image Enhancement | Yes |
| Reticle Display | Yes |
| System Parameter Reset/Saving | Yes |
| Working Temperature | -40℃～＋70℃ |
| Storage Temperature | -45℃～＋85℃ |
| Dimensions | ≤21mm×21mm×20.5mm |
| Weight | 14.2g±0.5g (without lens) |
