High Accuracy FW-TS03 Thermal Imaging Sight with 500m-2400m Detection Distance and Vanadium Oxide Uncooled Infrared Focal Plane for Clear Images
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-TS03 |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Detection Distance | 500m-2400m | Display Type | 1024×768 OLED |
|---|---|---|---|
| Accuracy | ≥ 98% | Distance Measurement Accuracy | ±2 M |
| NETD | ≤ 40 MK | ||
| Highlight | 2m Distance Measurement Thermal Imaging Sights,Night Hunting Thermal Imaging Sights,Police Security Thermal Imaging Sights |
||
Product Description
High Accuracy FW-TS03 Thermal Imaging Sights for Night Hunting and Police Security
Product Overview

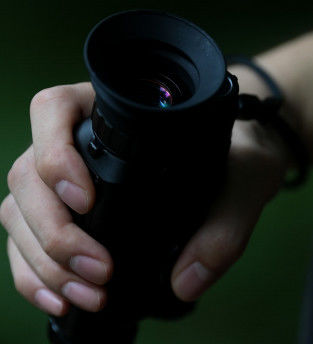

The TS series infrared thermal imaging scope is a professional-grade optical device designed for nighttime observation and targeting. Engineered for clarity and reliability, this thermal imaging sight offers superior performance in low-light conditions for hunting, security, and outdoor applications.
Key Features
- High-resolution thermal imaging with clear target identification
- Compact and lightweight design for easy handling
- Low power consumption with extended battery life
- Rugged construction with impact resistance
- Simple installation and intuitive operation
- Versatile applications for hunting, security, and outdoor sports
Technical Specifications
| Detector Type | Vanadium Oxide Uncooled Infrared Focal Plane |
|---|---|
| Resolution | 640×512 |
| Working Band | 3μm ~ 5μm |
| Pixel Size | 12 μm |
| NETD | ≤ 40mK@ 25° C, @ F/1.0 |
| Image Frame Rate | 50Hz |
| Infrared Lens | 35mm F1 (25mm F1, 50mm F1 options available) |
| FOV | 12.5° ×10° (35mm) 8.8° ×7° (50mm) |
| Display Mode | Monocular 0.39-inch color OLED, 1024×768 |
| Vision Adjustment | -8~+3 |
| Exit Pupil | 38mm |
| Detection Distance | Upright adult: 1000m(25mm)/1450m(35mm)/2000m(50mm) Medium truck: 2400m(25mm)/3400m(35mm)/4800m(50mm) |
| Identification Distance | Upright adult: 500m(25mm)/730m(35mm)/1000m(50mm) Medium truck: 1200m(25mm)/1700m(35mm)/2400m(50mm) |
| Color Modes | Black hot / White hot / False color |
| Electronic Amplification | 1×/2×/4× |
| Picture-in-Picture | Yes |
| WIFI | Supports image transmission |
| Power Supply | CR123A batteries, 4 pcs |
| Battery Life | ≥ 4 hours |
| Storage Capacity | 64G (Max 512GB) |
| Mounting Interface | Picatinny Rail |
| Weight | ≤ 650 g (including battery) |
| Dimensions | ≤ 260mm × 60mm × 80mm |
| Electrical Interface | Type-C, supports power supply, analog video output and media management |
| Mechanical Shock | ≤ 1000g |
| Operating Temperature | -20℃ ~ +55℃ |
| Storage Temperature | -40℃ ~ +70℃ |
