FW-A3 Uncooled Infrared Core Assembly with M12/M34 Lens Mount ≤1.5W Power Consumption and 8μm -14μm Spectral Range for High Sensitivity Thermal Imaging
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-A3 |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Interface | LVDS/USB/Ethernet | Lens Mount | M12/M34 |
|---|---|---|---|
| Power Consumption | ≤1.5W | Detector Type | Uncooled Microbolometer |
| Highlight | High performance Shortwave infrared telescope,Shortwave infrared band Shortwave infrared telescope |
||
Product Description

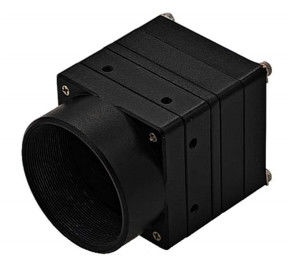

FW-A3 Uncooled Infrared Movement Components
Infrared Thermal Imaging Products
The FW-A3 uncooled infrared core assembly is a key component for infrared imaging based on microbolometer technology. Designed to operate at room temperature without cooling, this component is widely used in security monitoring, industrial detection, fire protection, medical diagnosis, and autonomous driving applications. It features high sensitivity, low power consumption, compact size, and lightweight design.
Key Features
- No refrigeration required with simple, reliable structure
- High sensitivity for low temperature difference scenarios
- Low power consumption design ideal for portable devices
- Multiple interface support for easy integration
- Complete software and hardware solutions to accelerate development
Technical Specifications
| Parameter | Value |
|---|---|
| Spectral range | 8μm -14μm |
| NETD | ≤50mK |
| Frame rate | 30 Hz, 50Hz, 60Hz |
| Storage temperature | -50℃ ~ +80℃ |
| Operating temperature | -40℃ ~ +70℃ |
| Weight | 50g-100g |
| Size | 45mm*45mm*25mm |
| Supply voltage | 3.3V, 5V, 12V |
| Power consumption | <50W |
| Protection level | IP67 |
Applications
- Security monitoring: Night surveillance, border patrol, perimeter protection
- Industrial inspection: Equipment diagnostics, power inspection, thermal analysis
- Firefighting: Rescue operations, smoke penetration, heat source location
- Medical: Temperature screening, disease diagnosis
- Autonomous driving: Night vision assistance, pedestrian detection
- Consumer electronics: Smartphones, outdoor sports equipment
