Convenient Tire Pressure Measuring Tool ATG Series Hose Pointer Type for 20C±2C Calibration
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | Tire Pressure Measuring Tool(hose pointer type) |
| Minimum Order Quantity | 1 set |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Measuring Range | (0-350) Psi/（0-2）MPa | Relative Humidity | ≦85%RH |
|---|---|---|---|
| Calibration Reference Environment | 20℃±2℃ | Protection Level | ≥IP67 |
| Highlight | Convenient Tire Pressure Measuring Tool,20C±2C Tire Pressure Measuring Tool |
||
Product Description

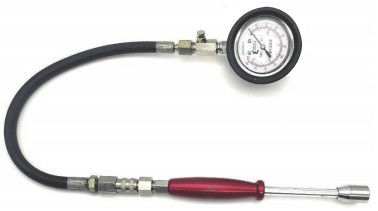

Descriptions of Tire Pressure Measuring Tool---ATG Series Tire Pressure Tool(hose pointer type)
Suitable for the measurement of aircraft tire pressure, it can correctly measure the pressure of aircraft tires, so as to ensure the safe flight of aircraft.
Specifications of Tire Pressure Measuring Tool---ATG Series Tire Pressure Tool(hose pointer type)
| Measuring range | (0-350)psi/(0-2)MPa |
| Pressure measuring rod | ATG-G14A:Pressure gauge interface thread M14 * 1.5, compatible with 12V1 air nozzle |
| Pressure measuring rod | ATG-G14B:Pressure gauge interface thread M14 * 1.5, compatible with 8V1 air nozzle |
| Accuracy level | 1.0%FS |
| Length | The length of the pressure measuring hose is 500m, and the length of the pressure measuring rod is 255mm |
| Diameter | The diameter of the pressure gauge dial is 60mm, and the maximum outer diameter including the protective cover is 80mm |
Model selection guide
| Part No. | Measuring range | Accuracy | Remark |
| ATG-Y60G14A | (0-350)psi | 1.0%FS | Threaded connection pressure gauge, quick plug connection tire pressure rod, compatible with 12V1 air nozzle |
| ATG-Y60G14B | (0-350)psi | 1.0%FS | Threaded connection pressure gauge, quick plug connection tire pressure rod, compatible with 8V1 air nozzle |
| ATG-Y60G14 | (0-350)psi | 1.0%FS | Threaded connection pressure gauge, quick plug connection tire pressure rod, compatible with 8V1 and 12V1 air nozzles |
