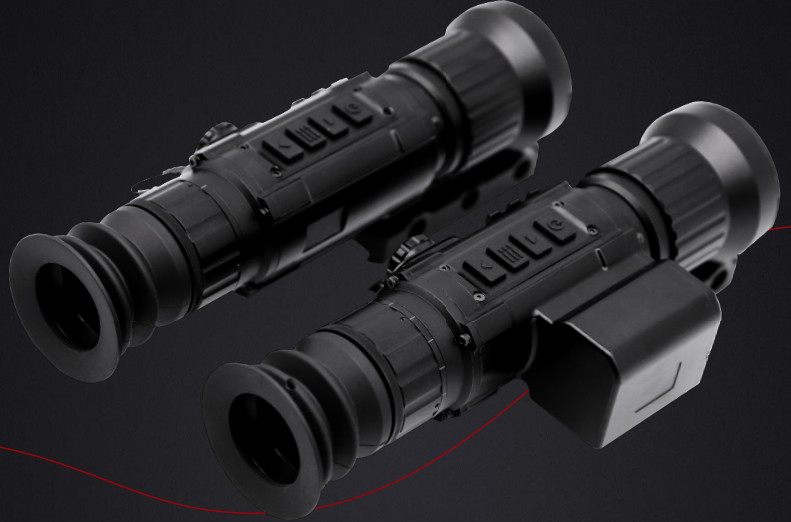

FW-AL50LRF Multifunction Infrared Thermal Imager No Burden More Precise
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FW-AL50LRF |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Dust/water Proof | IP67 | Operating Temperature | -40℃~+60℃，＜90%RH |
|---|---|---|---|
| Weight | 610g | Dimensions | 210mm×75mm×85mm |
| Electron Amplification | ×1,×2,×4,×8 | Frame Rate | 50HZ |
| Highlight | No burden infrared thermal imager,FW-AL50 Multifunction infrared thermal imager,More precise infrared thermal imager |
||
Product Description
Descriptions of FW-AL50LRF Multifunction infrared thermal imager No burden More precise
RLS-L series is a high-performance civil infrared thermal imager, which uses importedhigh-performance 640 ×512 high-resolution and high-sensitivity polysilicondetector with excellent imaging effect.Compact design, compact size,dust-proof waterproof,with high-strength impact resistance, cold, heat, strong and durable, suitable for all kinds of environments.
Features of FW-AL50LRF Multifunction infrared thermal imager No burden More precise
- High Resolution 640 × 512,12μm high sensitivity vanadium oxide uncooled detector
-
No film design, the highest frame frequency 50Hz, smooth picture without a catenary
- 0.39 inch 1024× 768 OLED display with fine picture quality
-
Aluminum-magnesium Alloy CNC technology to produce one-piece molding body, excellent anti-shock performance, strong environmental adaptability
-
Support rich image adjustment function, support menu function
- 50mm large Lens, long detection distance, high base magni-fication
-
Integrated Range accuracy is higher, once calibration, life-long adjustment-free
-
Various types of clamps are optional, suitable for all kinds of mainstream guide rail
-
Can replace 16340 battery, Standard Charger, long endurance
Specifications of FW-AL50LRF Multifunction infrared thermal imager No burden More precise
| Model | |||
| Detector | |||
| Detector Type |
Imported high performance polysilicon detector
|
||
| Spectral | 7.5~14μm | ||
| Resolution | 640×512 | ||
| Frame Rate | 50HZ | ||
| Pixel size | 12μm | ||
| Lens | |||
| Focal length | 50mm | ||
| FOV | 8.8°×7.0° | ||
| Digital Zoom | ×2.7 | ||
| Focusing | Manual Focus | ||
| Display | |||
| Screen | 1024×768,0.39inch OLED screen | ||
| Video output format | PAL | ||
| External Video | Support | ||
| Image parameter | |||
|
Correction Mode
|
Non-stop correction
|
||
| Luminance | Support | ||
| Contrast ratio | Support | ||
| Noise reduction | Support | ||
| Electron amplification | ×1,×2,×4,×8 | ||
| Pseudo-color mode |
White Heat, sky, edge, black heat, red heat pseudo-color, iron red pseudo-color
|
||
| Laser ranging | None | ||
| Start-up drawing time | <5S | ||
| Cross cursor | ≥5 | ||
|
Other functions
|
Picture-in-picture, Pitch Angle, electronic compass, Tilt Angle, hot-spot tracking | ||
| Power System |
|
||
| Batteries |
Two 16340 batteries, rechargeable, with customized plug-in rechargeable treasure
|
||
| Environmental adaptability | |||
| Operating temperature | -40℃~+60℃,<90%RH | ||
|
Storage temperature
|
-50℃-70℃
|
||
| Dust/water proof | IP67 | ||
| Physical characteristics | |||
| Weight | 610g | ||
| Dimensions |
210mm×75mm×85mm
|
||
| Packaging content | |||
| Standard fitting |
(mainframe, guideway,custom external charging cable, video cable, sling, mirror cloth,brush, hexagon wrench, protective bag) × 1,16340 batteries × 2
|
||
| Recognition Range/Detection Range | |||
| People | R: 1900m D: 760m |
||
| Pig/Deer | R: 1672m D: 669m |
||
| Rabbit | R: 487m D: 195m |
||
| Chickens | R: 356m D: 143m |
||
| Sparrows | R: 195m D: 78m |
||
