FW-MP12401L Electro-optical Tracking Telescope with 1920*1080 Full HD 100m~10km Observation Range and ≤2kg Weight for Aerial Video Observation
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | 12401L |
| Minimum Order Quantity | 1 set |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 100 pcs/year |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Supply | DC+12V | Maximum Power Consumption | ≤5W |
|---|---|---|---|
| Observation Target Distance | 100m~10km | Operating Temperature | -40℃～+60℃ |
| Highlight | FW-MP12401L Air camera,Electronic components Air camera,Electro-optical tracking telescope Air camera |
||
Product Description

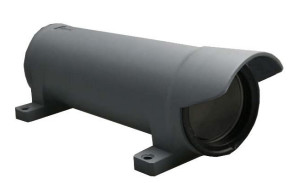

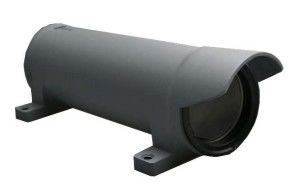

FW-MP12401L Air Camera Electro-optical Tracking Telescope Electronic Components
Product Description
The FW-MP Electro-optical tracking telescope components are designed for aerial video observation. The output video signal serves as both a near-end terminal display signal and can be transmitted via cables for remote video display.
Key Features
- Long-distance imaging capability
- Lightweight construction
- Integrated design combining structure, optics, and electrical performance
- Rugged design with anti-vibration, rain, salt spray, and airtight protection
- 1920*1080 Full HD resolution
Technical Specifications
| Observation target | For a 10m wide target, clearly visible against sky background within 100m~10km range, with minimum resolution ≥8 pixels |
| Pixel size | 6.5µm * 6.25µm |
| Horizontal resolution | ≥480TVL |
| CCD Type | 1/3″ black and white CCD |
| Number of effective CCD pixels | 752*582 |
| Product Weight | ≤2kg |
| Clear imaging range | 90m to infinity |
| System focal length | 120mm |
| Field of view | 2.2° * 1.7° |
| Signal-to-Noise Ratio | ≥50dB |
