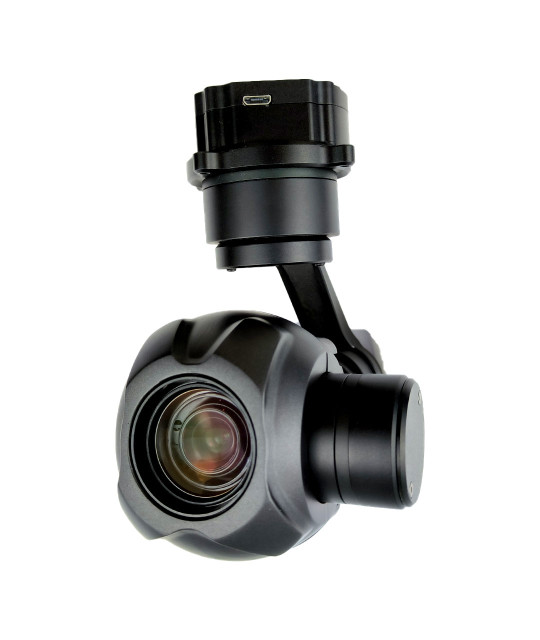

Small IRCUT 10x Optical Zoom 3-Axis Gimbal Camera IP Output

Place of Origin CHINA
Brand Name Forward
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details boxes
Delivery Time 1-2 weeks
Payment Terms L/C, T/T
Supply Ability 100 pcs/years

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

Small IRCUT 10x Optical zoom camera

,

IP Output 10x Optical zoom camera

,

3-Axis Gimbal Camera

Leave a Message
Product Description

Small IRCUT 10x Optical zoom 3-Axis Gimbal camera, IP output

Descriptions of Small IRCUT 10x Optical zoom 3-Axis Gimbal camera, IP output

Is a drone gimbal integrated 90x mixed zoom camera and high-precision 3-axis stabilized PTZ. It adopts network IP output and control. The PTZ adopts high-precision encoder FOC control scheme, which has the characteristics of high stability, small size, lightweight and low power consumption; Visible light camera adopts 2 mega effective pixel SENSOR. Both the serial port and the network can control the camera and PTZ, and support the local TF card to record and take pictures.

Functional Features:

90x Mixed zoom;
TF card storage
170ms low delay RTSP
IP contiol and output
Multiple control modes
Groud station display control
Light weight gimbal,360g
3-axis stabilizer

Specifications:

Voltage DC12V-26.2V
Power Supply Dynamic 5W
Working Status Roll Angle -45°~+45°
Pitch angle -45°~+120°
Yaw angle -280°~+280°
Pitch and Roll Jitter angle ±0.02°
Horizontal jitter angle ±0.03°
One-click restore One-click restore to the initial position
adjustable gimbal speed Low speed at big zom status and fast
speed control at small zoom status.Adaptively speed control based on zooming of daylight sensor.
Control way IP,SBUS,UART control(Optional with PWM control)
Visible light Camera SENSOR 1/2.8 inch 2 mega pixels wide dynamic CMOS SENSOR)
Optical Zoom 10×HD optical zoom lens,f=5.15±5%~47.38±5%mm
AF Time Real time fast focusing,focusing time<1s
video output RTSP stream IP network output,4K 1080P video stream local TF card storage
Local Record Local TF record,H.264/H265 4K,1080P video stream local TF card storage
Field Angle(FOV) D:WIDE 69.5°±5% TELE7.95°±5%
H:WIDE 61.5°±5% TELE7.00°±5%
V:WIDE 35.0°±5% TELE39.7°±5%
Support Mode 1080P 30fps
Device Size Φ:148mm H:132mm
Working Condition -10℃ to +55℃/20% to 80% RH
Storage Environment -20℃ to +60℃/20% to 95% RH
Mainly usage UAV aerial photography
Weights(Not including dampers) 360±10g

Small IRCUT 10x Optical Zoom 3-Axis Gimbal Camera IP Output 0Small IRCUT 10x Optical Zoom 3-Axis Gimbal Camera IP Output 1Small IRCUT 10x Optical Zoom 3-Axis Gimbal Camera IP Output 2
