Two fixed focal length EO +1100m LRF Small Gimbal Camera
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | boxes |
| Delivery Time | 1-2 weeks |
| Payment Terms | L/C, T/T |
| Supply Ability | 100 pcs/years |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Description

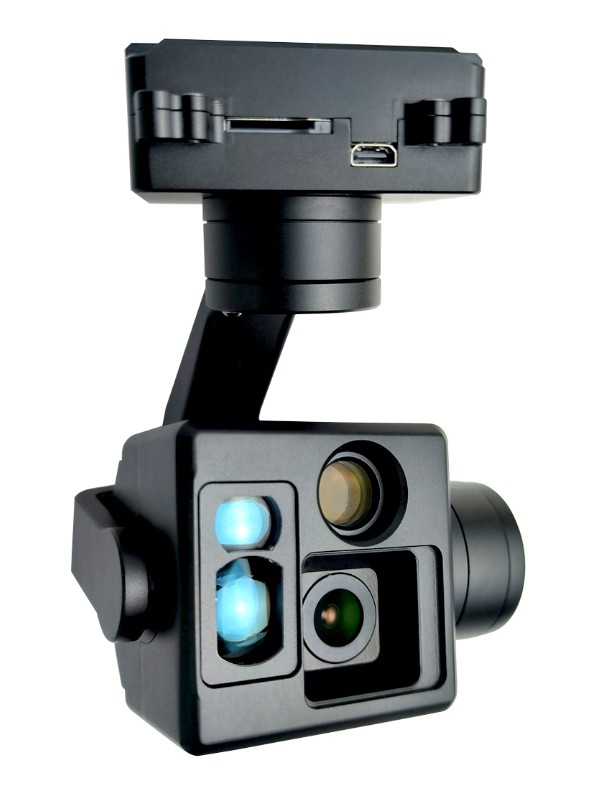

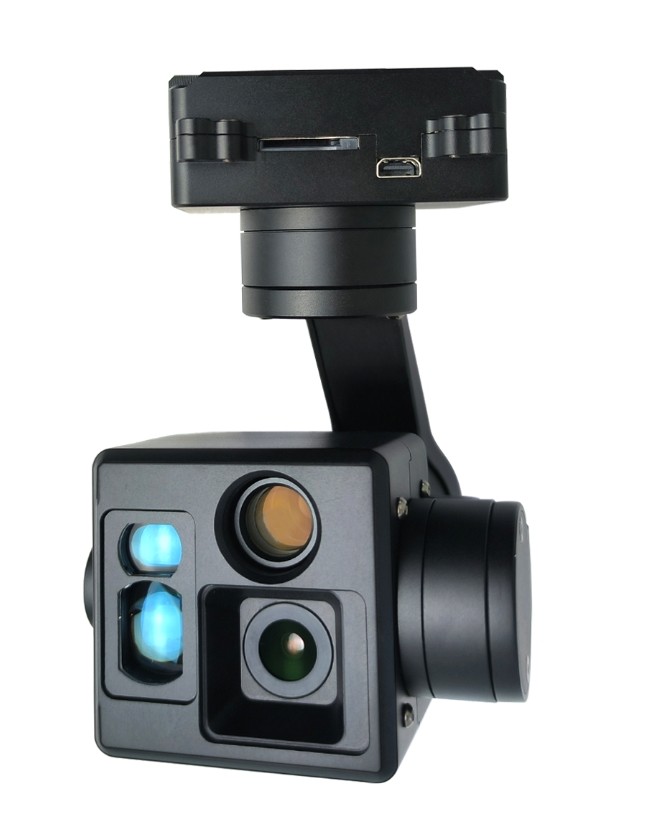

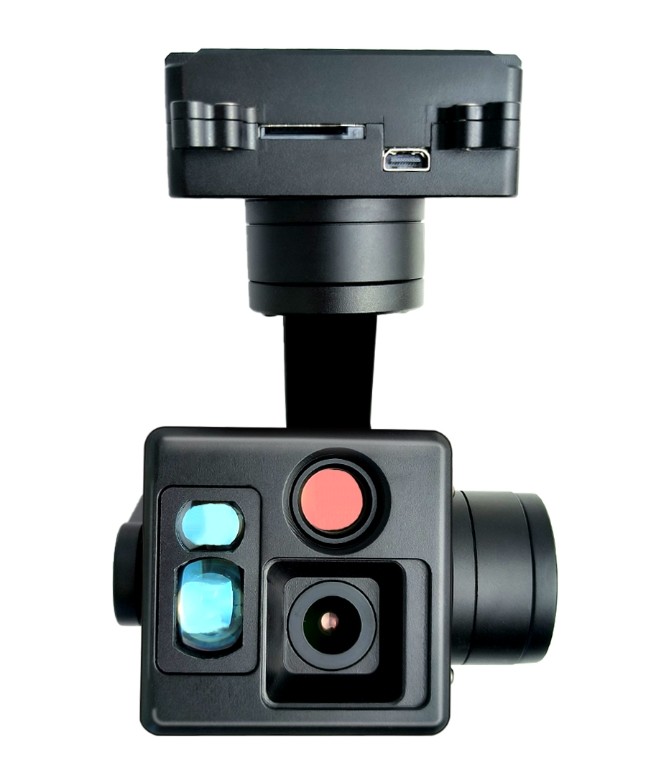

Two fixed focal length EO +1100m LRF Small Gimbal Camera
Descriptions of Two fixed focal length EO +1100m LRF Small Gimbal Camera:
This product is a three-sensor three-axis stabilization small optical pod that integrates two visible light cameras, one with a 25mm focal length of 8 mega pixel, and one with a 6mm focal length of 2 mega pixel. It supports 9x digital zoom and 1200-meter laser rangefinder. The pod uses network IP and HDMI dual output, which has the characteristics of high stability, small size, light weight and low power consumption; the system supports network RTSP code stream output, and the two video streams can be combined and output in picture-in-picture, supporting a variety of picture in picture modes, supporting local TF card 2-ways recording and photography, one channel is 4K, the other is 1080P. UART, network, and S.BUS can all control the camera and gimbal.
Features of Two fixed focal length EO +1100m LRF Small Gimbal Camera:
- 4K EO
- 9x Digital Zoom
- IP and HDMI dual output
- Light Weight Gimbal Camera,Weight 208±10 grams
- 1080P EO
- 1200 meters LRF
- Network,UART①,S.BUS Control
- TF card dual recording,networkreading and writing
Specifications of Two fixed focal length EO +1100m LRF Small Gimbal Camera:
| 4K EO+1080P EO+1200 meters LRF | ||
| Voltage | DC 12V-26.2V② | |
| Power Supply | Dynamic 7W | |
| Working characteristics |
Roll Angle | -45°~+45° |
| Pitch Angle | -45°~+100 | |
| Yaw Angle | -145°~+145° | |
| Angle jitter in pitch and roll |
±0.02° | |
| Horizontal angle jitter | ±0.03° | |
| One-click return to center function |
Automatically and quickly return to the initial position with one click | |
| Adjustable control speed | When the gimbal rotates,speed adaptation is based on the current speed mode and visible light camera magnification. |
|
| Control method | Support Network IP,UART and SBUS Control | |
| 4K EO Parameters |
CMOS Size | CMOS SENSOR:8 mega pixel |
| Digital Zoom | 9x Digital Zoom | |
| Compressed Storage Mode |
H264,H265,video streaming local TF storage 4K | |
| Field of View (FOV) | 25mm lens,FOV: 10.5°×7.8° | |
| 1080P EO Parameters |
CMOS Size | CMOS SENSOR:2 mega pixel |
| Digital Zoom | 9x Digital Zoom | |
| Compressed Storage Mode |
H264,H265,video streaming local TF storage 1080p | |
| Field of View (FOV) | 6mm lens,FOV: 60°×43° | |
| Laser Range Finder |
Wavelength | 905nm(class 1 laser) |
| Measurement | 5～1200m | |
| Accuracy/Resolution | ±1m | |
| HDMI video | Micro-D HDMI1080P 30fps | |
| Network output mode | 1080P 30fps /4K 30fps | |
| Dimension | φ:120mm H:108mm | |
| Work Condition | -10℃ to+45℃ /20%to 80%RH | |
| Storage Condition | -20℃ to+60℃ /20%to 95%RH | |
| Application UAV aerial photography | ||
| Weight 208±10 grams | ||
