Compact Hybrid Zoom Dual Output Small Gimal For Video Production
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | boxes |
| Delivery Time | 1-2 weeks |
| Payment Terms | L/C, T/T |
| Supply Ability | 100 pcs/years |
Product Details
| Highlight | Video Production Hybrid Zoom Gimal,Compact Hybrid Zoom Gimal,Small Hybrid Zoom Gimal |
||
|---|---|---|---|
Product Description

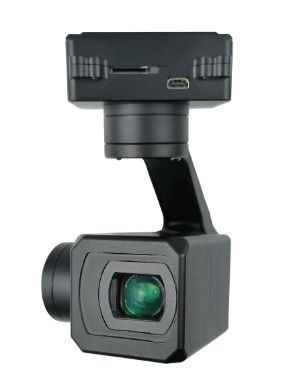

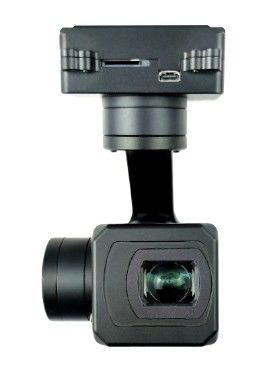

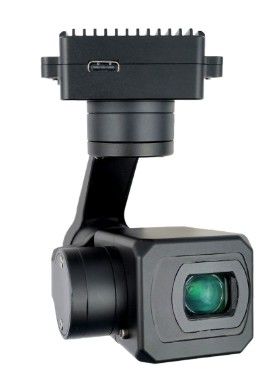

Hybrid zoom dual output small gimal
Descriptions of Hybrid zoom dual output small gimal:
This product is a single zoom gimbal that integrates 45x hybrid zoom camera and high-precision professional 3-axis stabilization PTZ. It adopts IP and HDMI dual output, IP control, adopts high-precision encoder FOC control scheme PTZ. It has the characteristics of high stability, small size, light weight, and low power consumption; The visible light camera uses a sensor with an effective pixel size of 4 million. Serial ports and S.BUS and network can control the camera and PTZ, supporting local TF dual channel recording and photography.
Features of Hybrid zoom dual output small gimal:
High speed focus tracking
170ms low latency
RTSP stream output
High precision control algorithms
IP/HDMI dual output
Provide integrated ground App
Lightweight 200g
Specifications of Hybrid zoom dual output small gimal:
| Dual light small gimbal | ||
| Voltage | DC 12V-26.2V(= | |
| Power Consumptior | Static 6W | |
| Working Status |
Roll angle action range | -45°~ +45° |
| Pitch angle action range | -45°~ +120° | |
| Yaw angle action range | -145°~+145° | |
| Angle jitter in pitch and roll direction | ±0.02° | |
| Horizontal angle jitter | ±0.03° | |
| One click return function | One click automatic quick return to the initial position | |
| PTZ control speed adjustable | When the PTZ rotates,the speed is adaptive based on the current speed mode and the multiple of the visible camera. | |
| Control mode | Support network IP,S.Bus and Serial port control (Optional PWM control) |
|
| Visible Light Camera |
SENSOR | 1/3 inch 4MP CMOS SENSOR |
| Optical Zoom | 5x HD optical zoom lens,f-5±10%～25±10%mm | |
| AF Time | Real time focusing,fast focusing time<1s | |
| Video output | Network RTSP 1080p output,video stream local TF storage | |
| Field Angle(FOV) | D:WIDE 61.1° TELE 12.41° H:WIDE 50.12° TELE 10.81° V:WIDE 38.07° TELE 8.13° |
|
| Support Mode | 1080P 30fp: | |
| Device Size | 99mm×120mm | |
| Working Condition | -10℃ to+45℃/20%to 80%RH | |
| Stored Environment | -20°℃ to +60℃/20%to 95%RH | |
| Main application | UAV aerial photography | |
| Weight | 200±10g | |
